Product Overview:

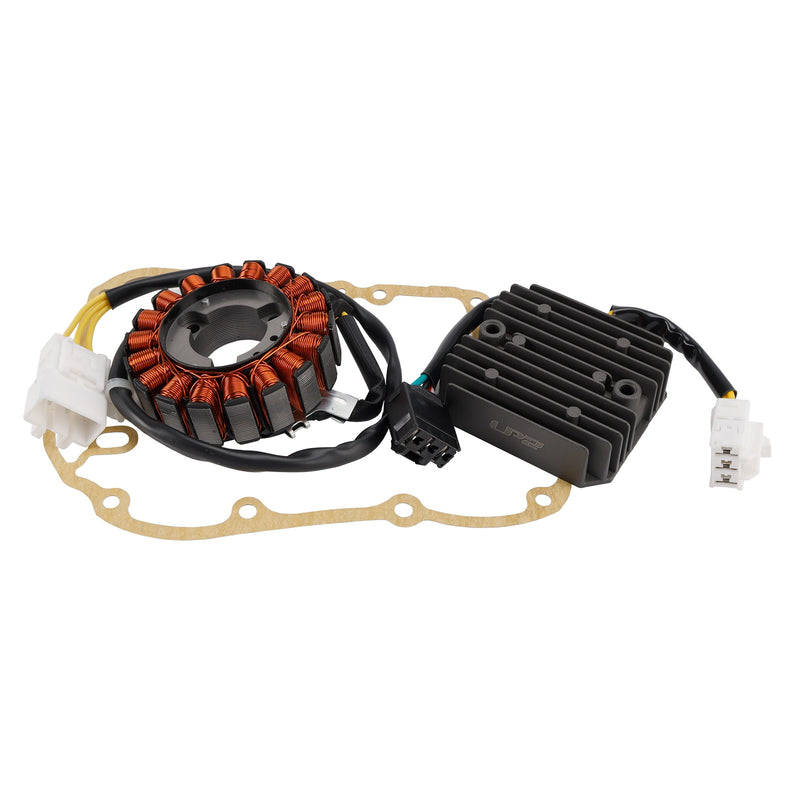

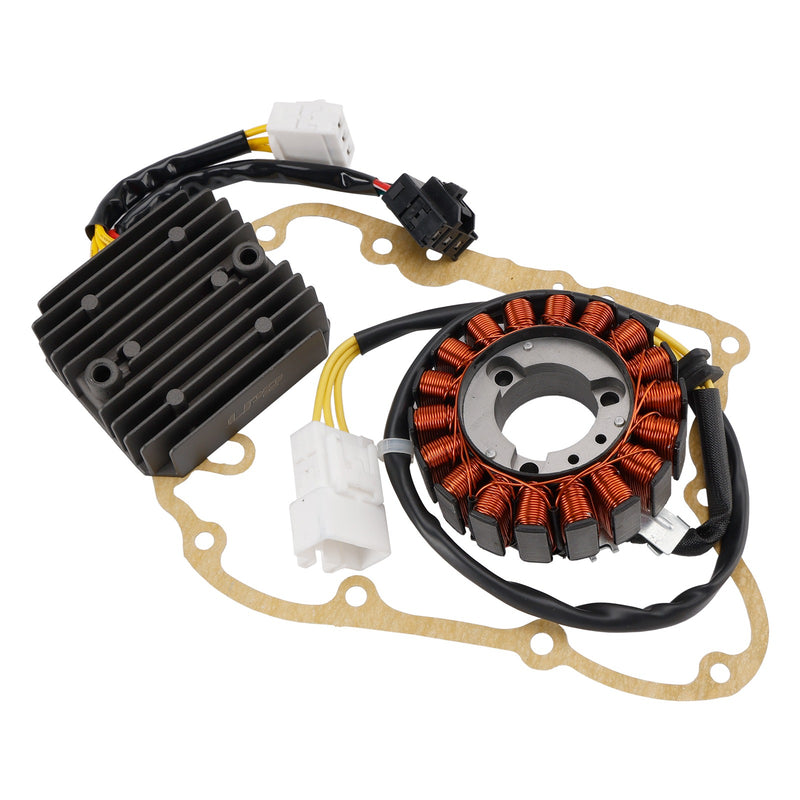

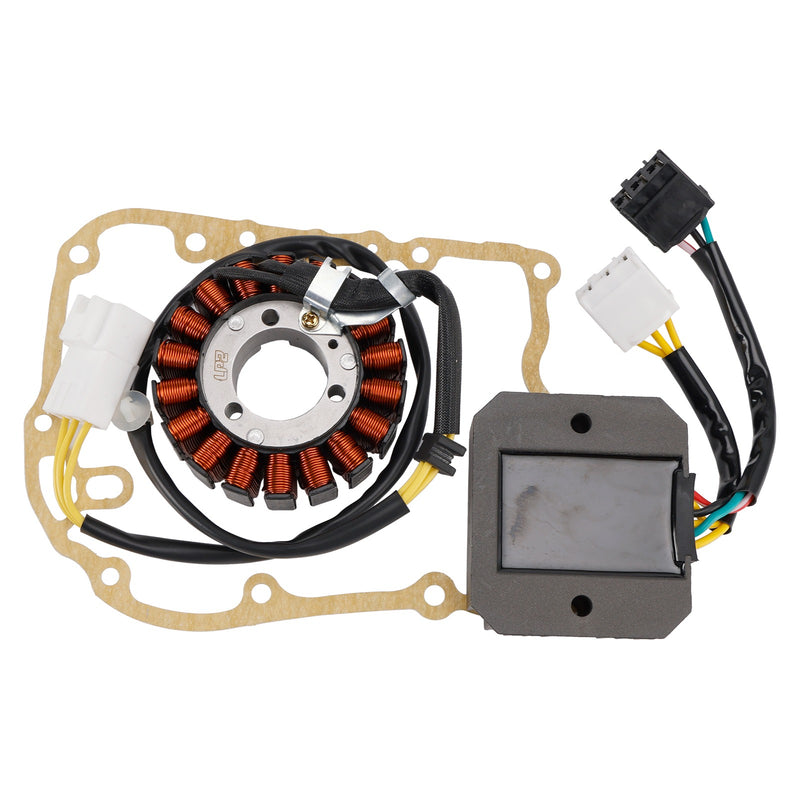

This complete kit includes a stator, regulator rectifier, and gasket, providing everything needed for reliable charging system performance.
Made from high-grade magnetically conductive materials to ensure stable power generation and reduced magnetic losses.
Meets or exceeds OEM specifications for quality and durability, serving as a direct replacement for your original unit.
Premium insulated lead wires offer superior abrasion and heat resistance for long-term reliability.
Engineered for a precise fit and ready for installation right out of the box.
Always apply a proper sealant when mounting the cable gland joint to ensure a secure seal.
Instruction manual is not included.
All components are bolt-on ready for a hassle-free installation.
Attention:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit
other specification:

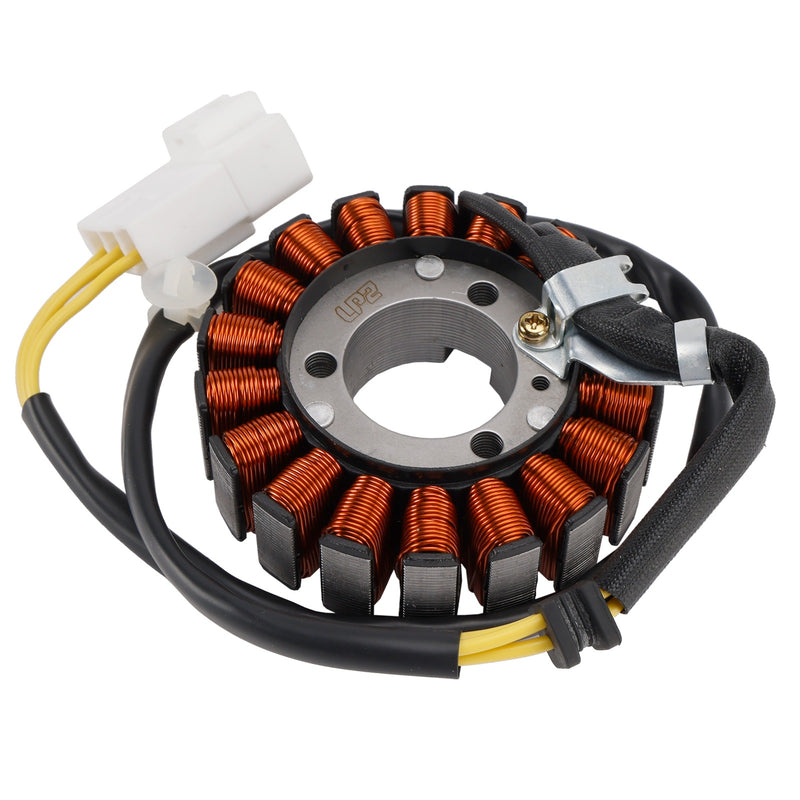

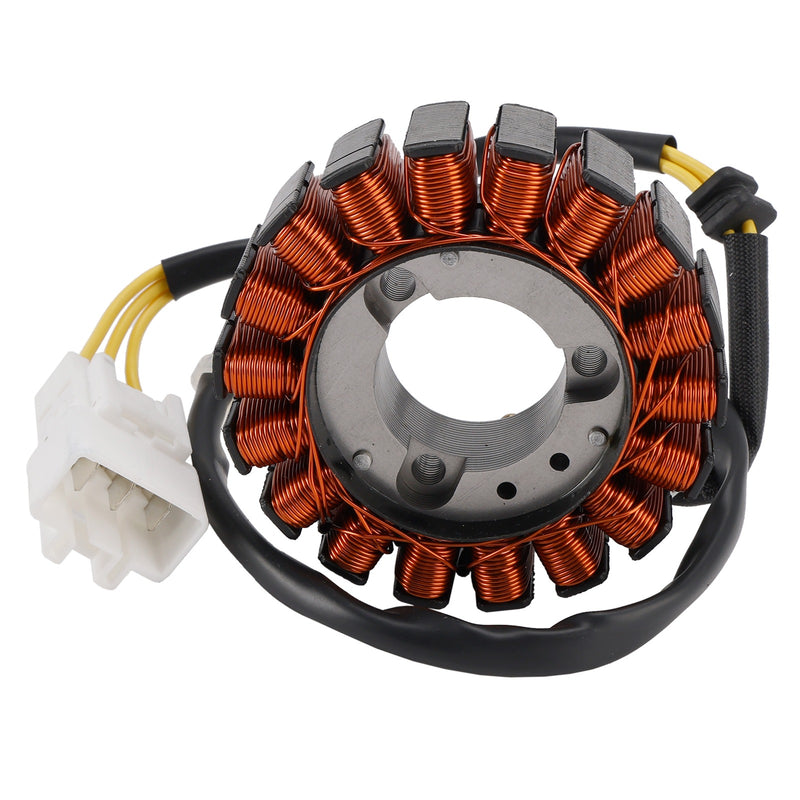

Stator
Number of wires: 6
Number of plugs: 2

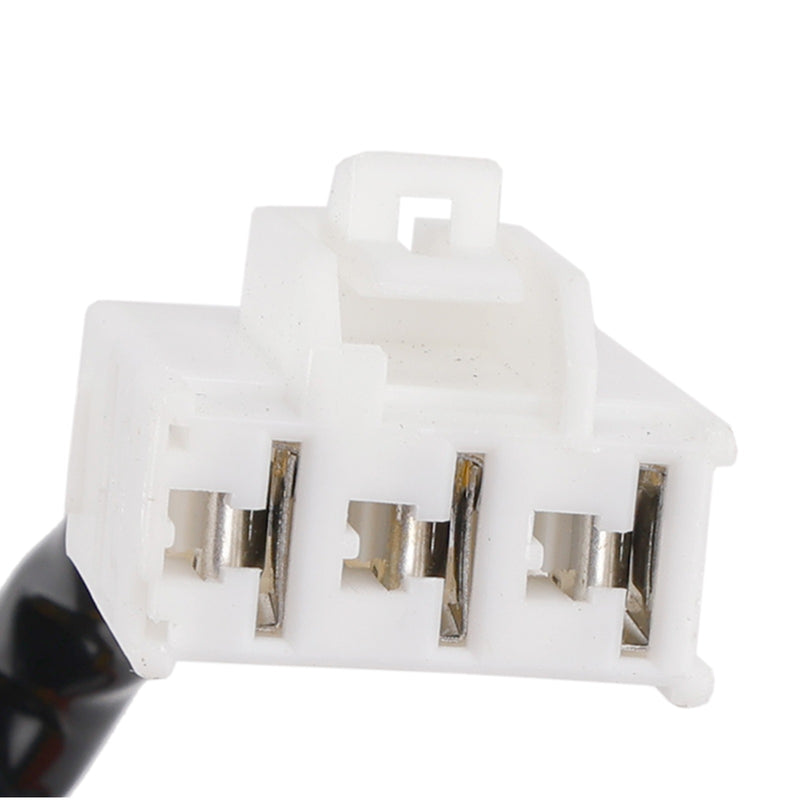

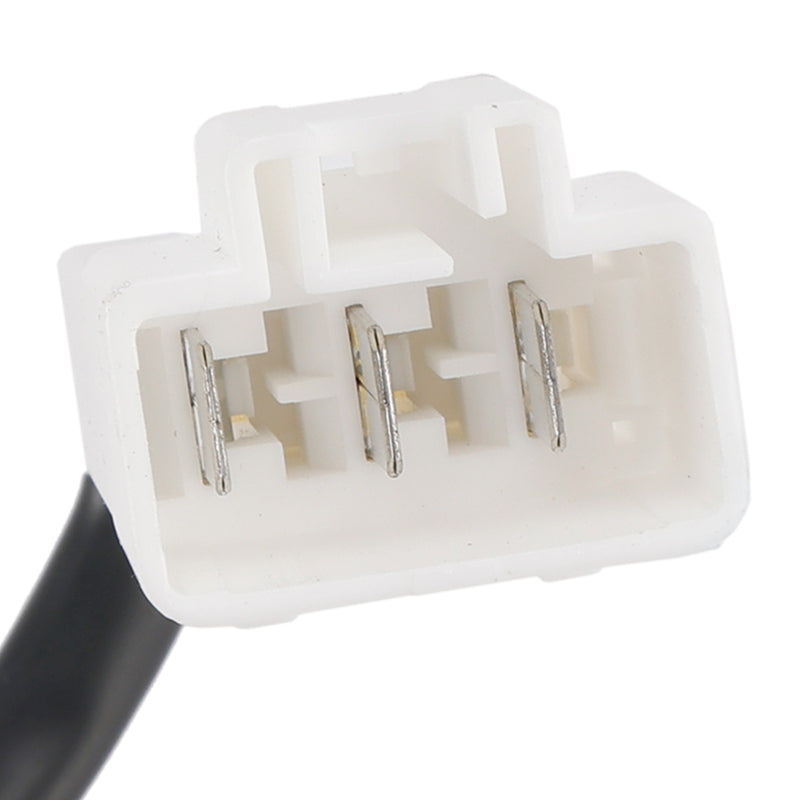

Number of pins: 3 + 3
Number of fixation holes: 3
Number of poles: 18
Exterior diameter: 92mm
Interior diameter: 35mm

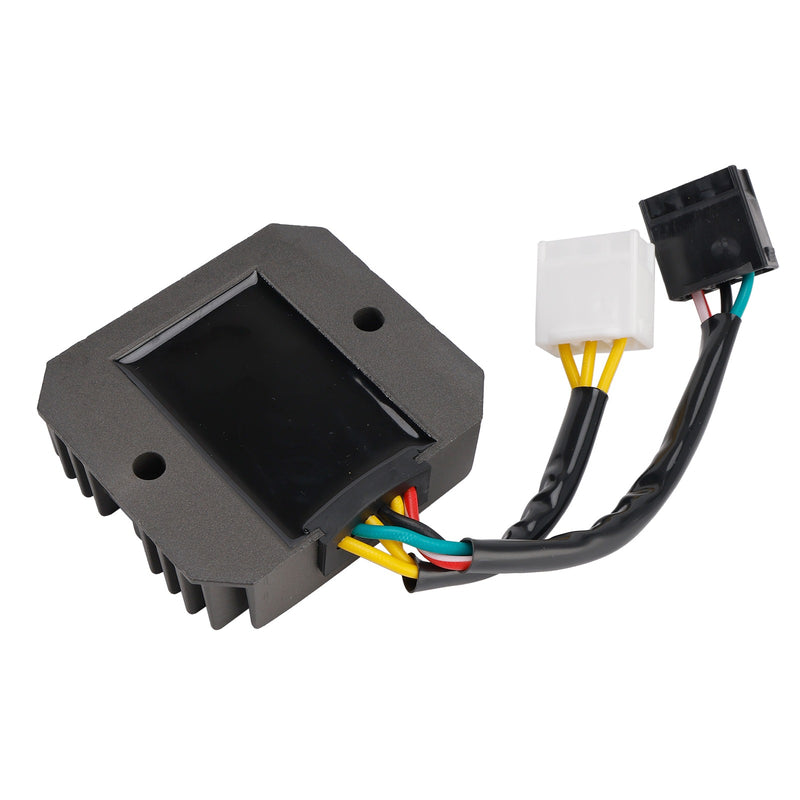

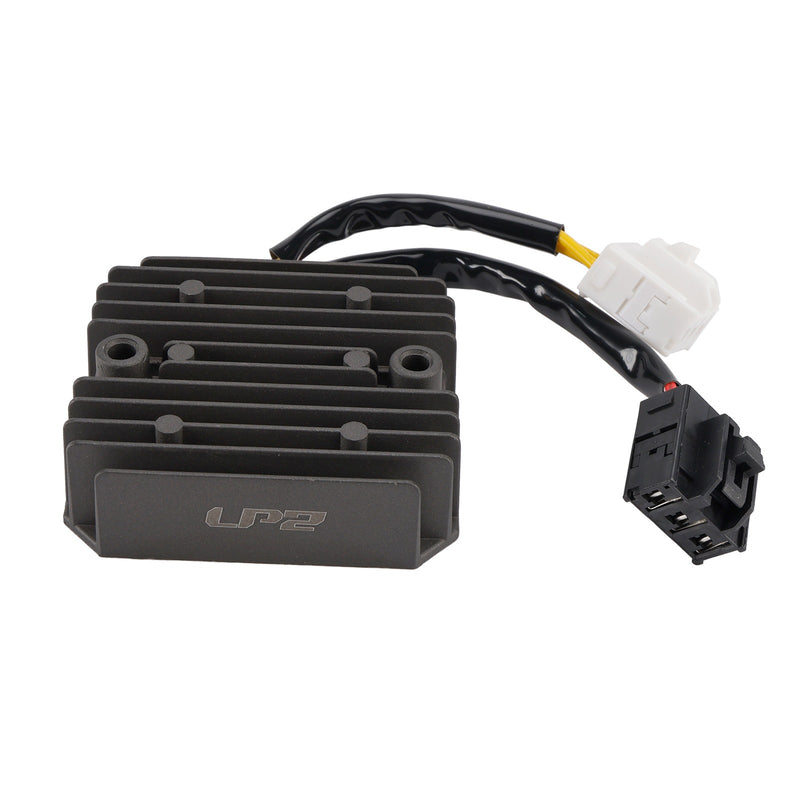

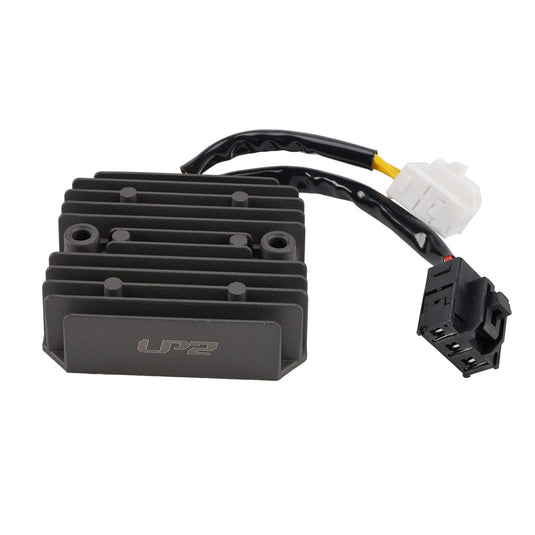

Regulator
Number of wires: 6
Number of plugs: 2
Number of pins: 3 + 3

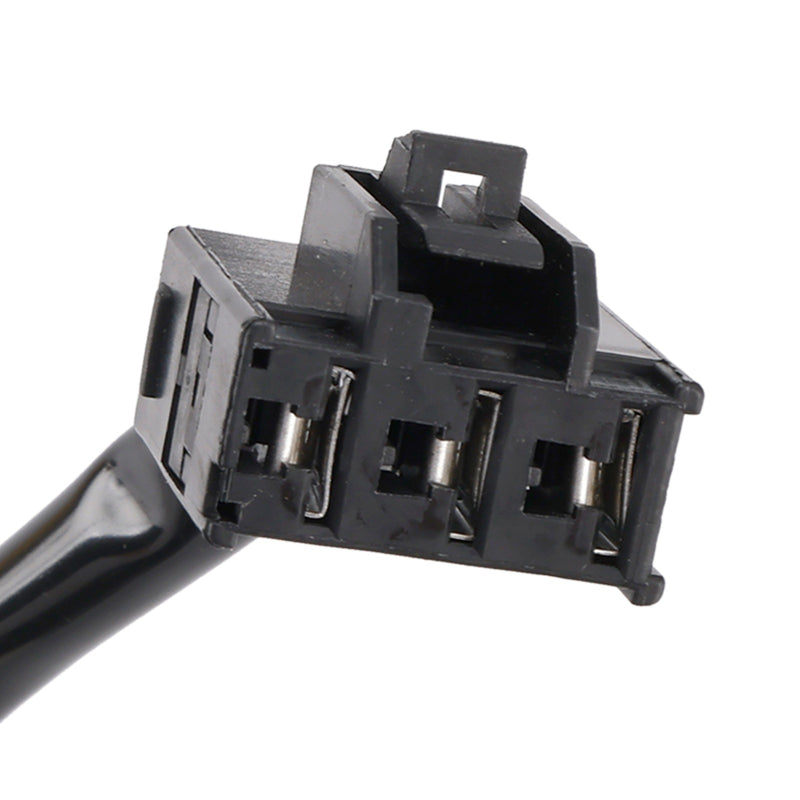

Please compare the number of pins and plugs with the old part before purchasing.
Replacement Part Number:
Stator Assy: 31120-KTF-640
Rectifier, regulator: 31600-KTF-641
Gasket, generator cover: 11394-KGF-910, 11394-KGF-911, 11394-KGF-912
(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Compatibility:
Fit for Honda SH125 2005-2012
Fit for Honda SH125D 2009-2012
Fit for Honda SH125S 2007-2010
Fit for Honda SH125R 2008-2010/2012
Fit for Honda SH150 2005-2012
Fit for Honda SH150S 2007-2008/2011
Fit for Honda SH150R 2008/2010-2012
Fit for Honda SH150D 2009
Fit for Honda SH150I 2010
Fit for Honda PES125 PS125 2006-2012
Fit for Honda PES125R PS125 2008-2010
Fit for Honda PES150 PS150 2006-2010
Fit for Honda PES150R PS150 2008-2009
Fit for Honda UH125D 2009
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

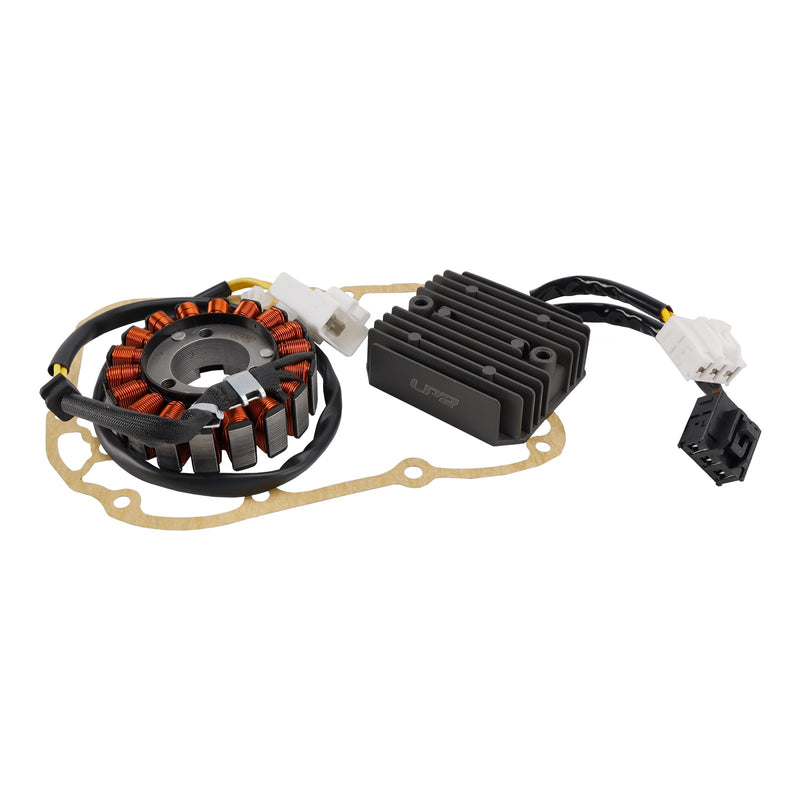

Package List:
1 x 18-Pole Generator Stator
1 x 6-Wire Voltage Regulator

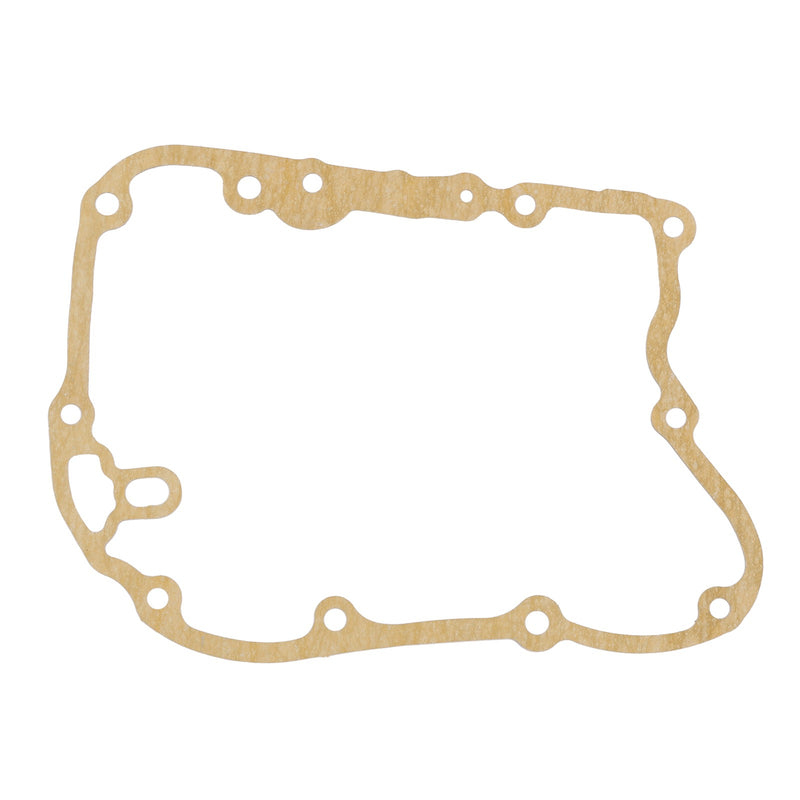

1 x Crankcase Gasket
(Comes exactly as pictured.)
Notes:
Before installing your new stator regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
