Product Overview
This complete top end rebuild kit is an ideal solution if your engine has low compression, cylinder damage, or piston seizure.
Includes everything shown: cylinder, piston, rings, pin, clips, and top end gasket kit.
Piston is anodized for superior heat resistance and extended service life.
Gaskets are made from high-performance materials for long-lasting sealing reliability.
A cost-effective replacement for worn or damaged original components.
Kit is built to standard spec: 74mm bore x 58mm stroke with a 17mm steel piston pin.
All components are bolt-on ready for a hassle-free installation.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 249ccm
Bore Type: Standard Bore
Bore Size: STD 74mm
Stroke: 58mm
Pin Diameter: 17mm
Cylinder Casting: 1S400
Replacement Part Number:
Cylinder: 1S4-11311-01-A0, 4D3-11311-01-00
Cylinder Base Gasket: 4D3-11351-00-00
Cylinder Head Gasket: 5XT-11181-00-00
Piston (Std): 1S4-11631-20-A0
Pin, Piston: 4XV-11633-00-00
Piston Ring Set (Std): 4XV-11603-00-00
Circlips, piston: 90468-12069
Chain Tensioner Gasket: 5XT-12213-00-00
Compatibility:
Fit for Yamaha ATV Raptor 250 all models 2008-2013
Fit for Yamaha YBR250 Fazer 2007-2011
Fit for Yamaha XT250 2008-2022
Fit for Yamaha XTZ250 Lander 2009-2018
Fit for Yamaha YS250 Fazer 2014-2017
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package List:

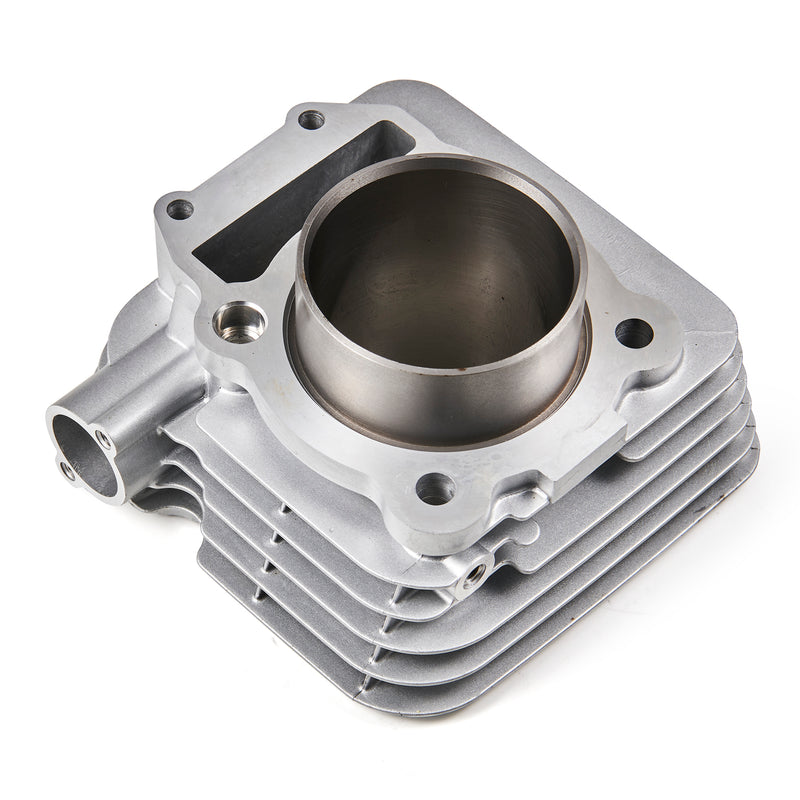

1x Cylinder
1x Piston(STD)
1x Piston Ring Set

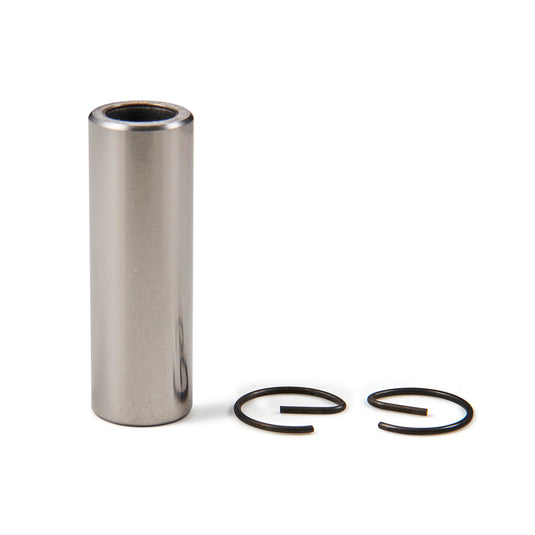

1x Wristpin
2x Circlip
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket
Notes:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
