Product Overview:
If your cylinder is blown, compression is too low, or piston seizure has occurred, this kit is the ideal solution for you.

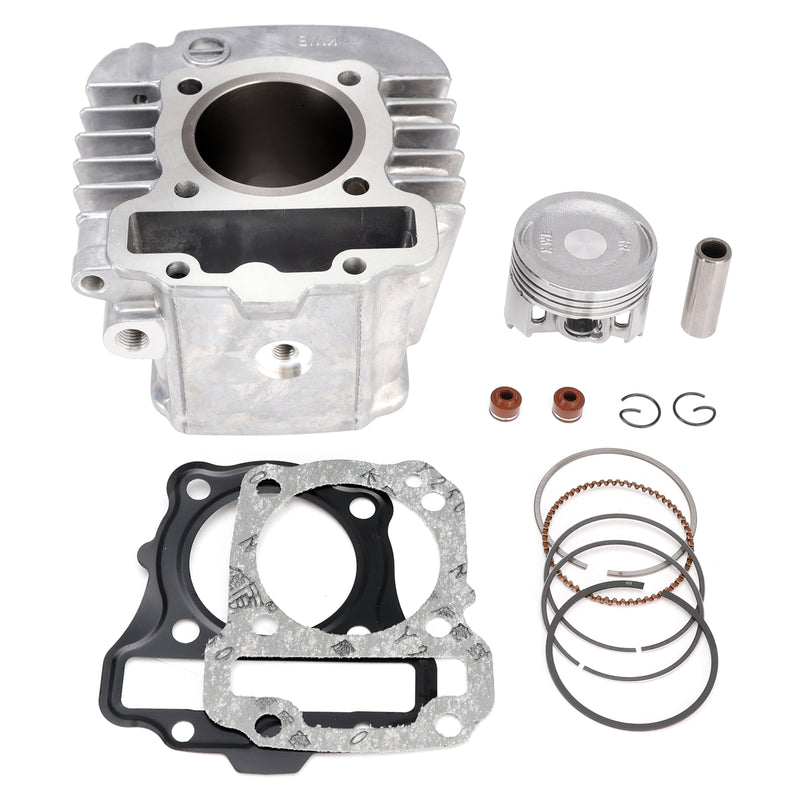

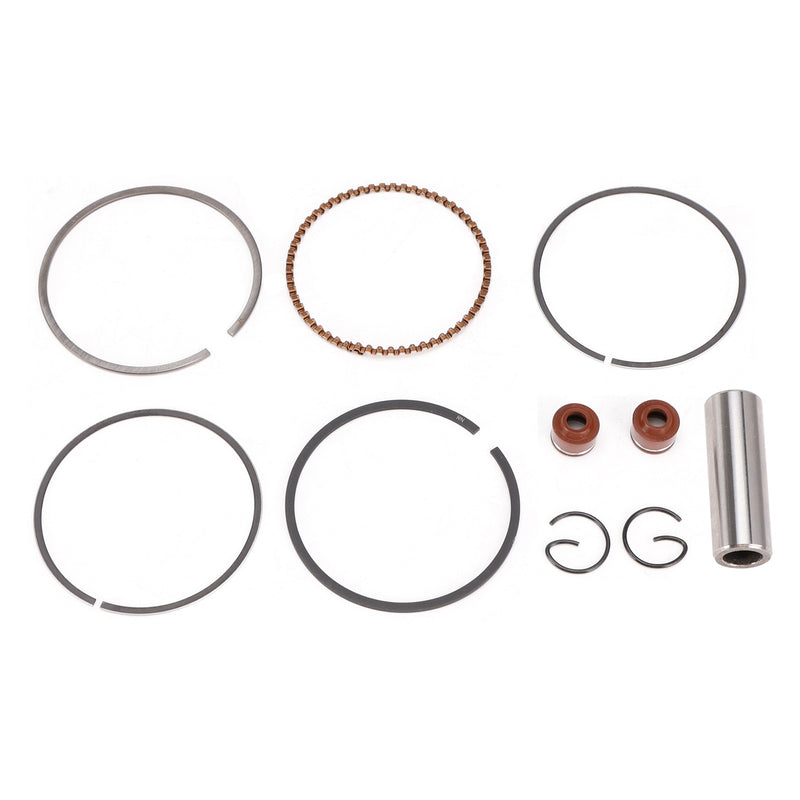

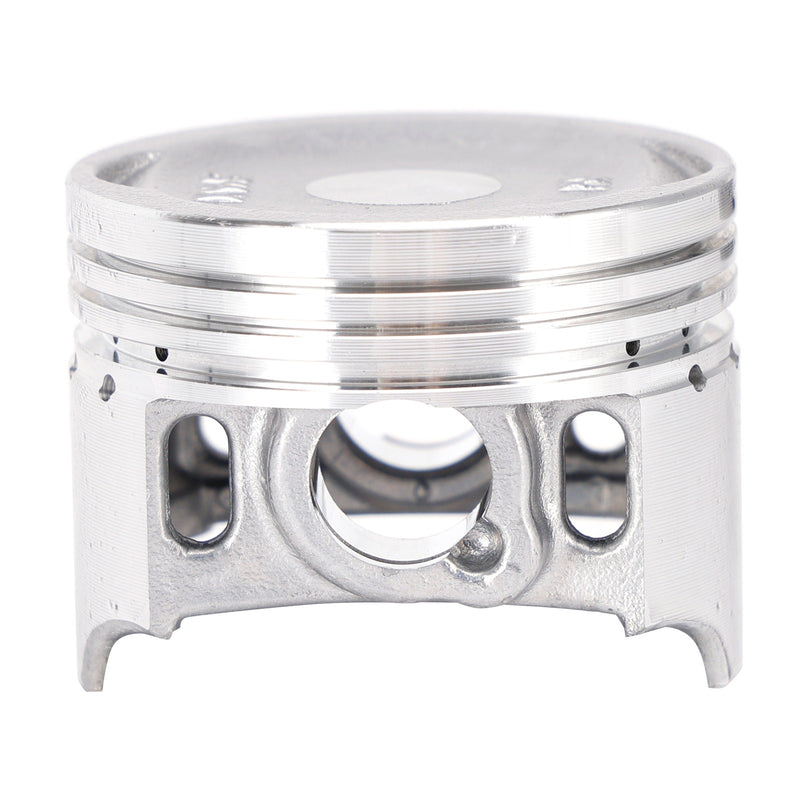

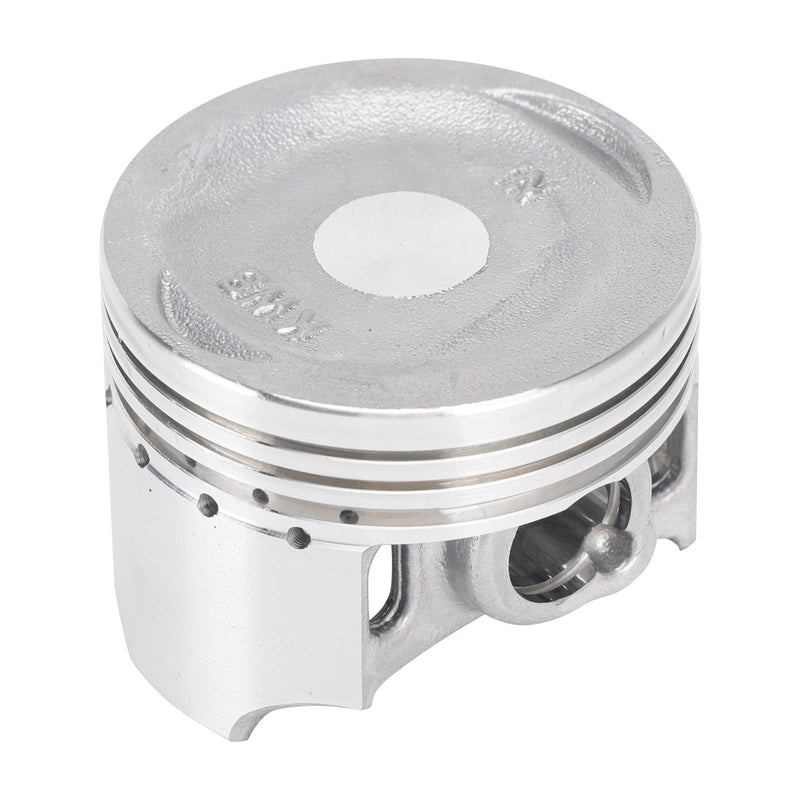

The kit includes everything needed for a complete top-end rebuild: cylinder, piston, rings, pin, clips, and top-end gasket kit (exactly as pictured).

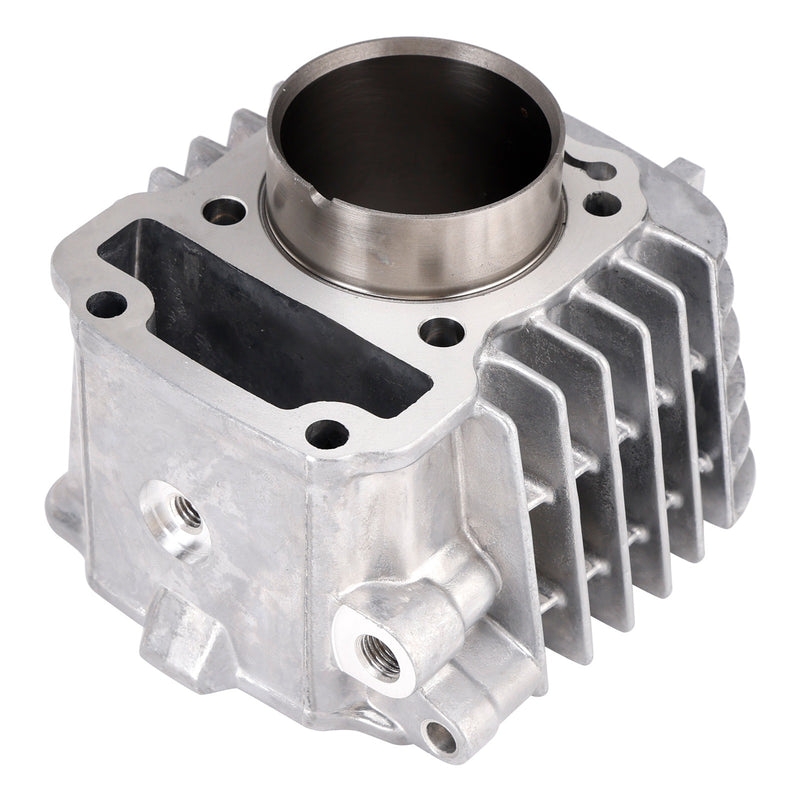

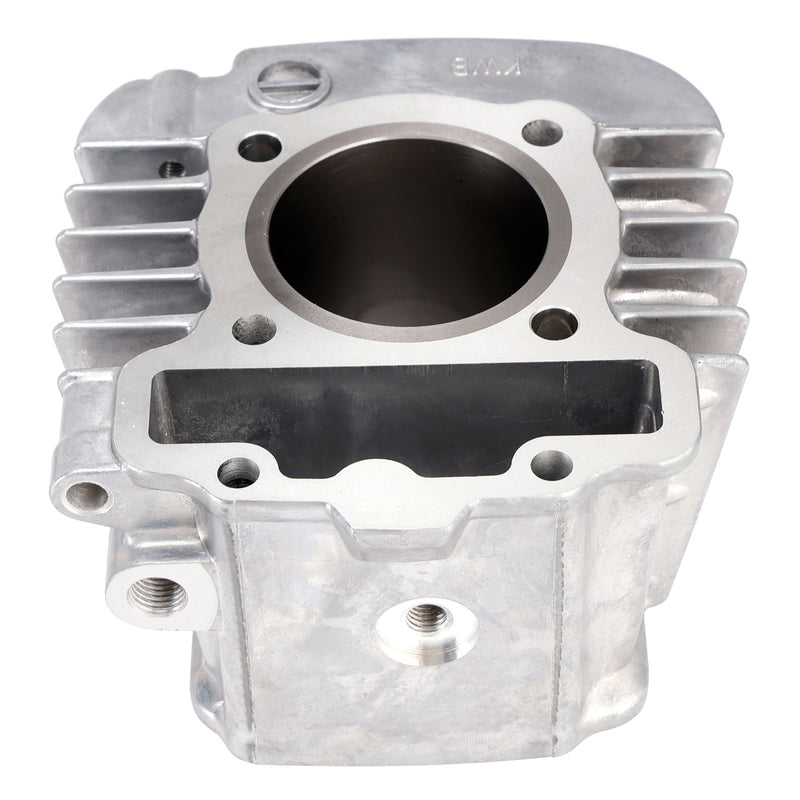

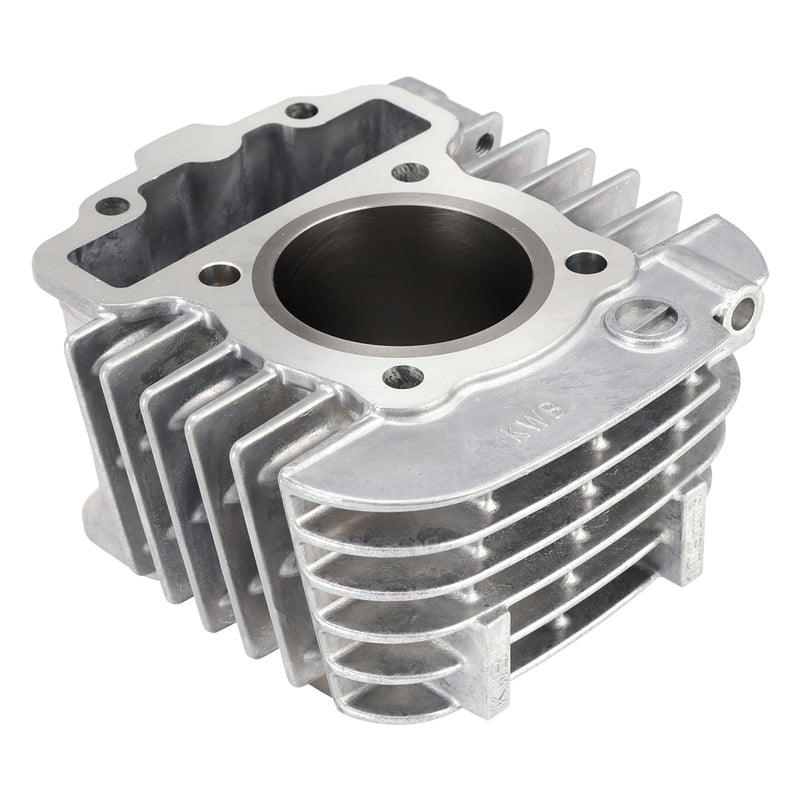

The cylinder is made from aluminum with an internal cast iron sleeve for improved cooling performance and enhanced durability.
High-performance gaskets increase durability and provide greater reliability.

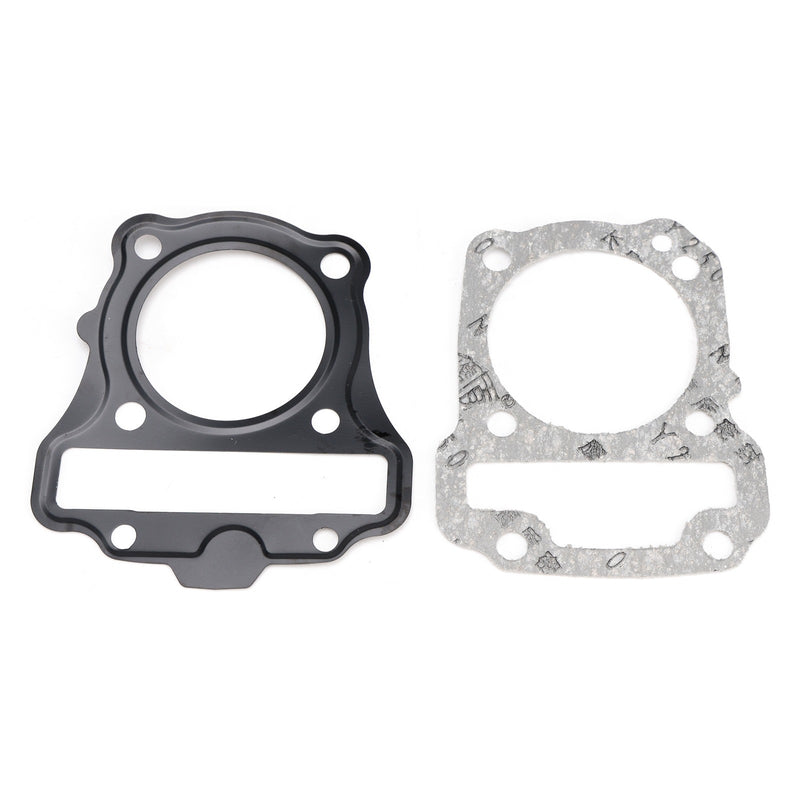

Includes all gaskets shown for a full top-end rebuild.
This kit is designed for a standard bore size of 50mm with a 55.6mm stroke and a 13mm steel piston pin.
A great low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Engine: 4-Stroke
Displacement: 109cc
Bore Type: Standard Bore
With Temperature Sensor Port: Yes
Temperature Sensor Port Angle: 90ยฐ
Bore diameter: 50 mm
Stroke: 55.6 mm
Pin diameter: 13 mm
Replacement Part Number:
Cylinder: 12100-KWB-600 / 12100-KYK-D10 / 12100-K03-H10
Cylinder Base Gasket: 12191-K58-TC0
Cylinder Head Gasket: 12251-KWB-601
Piston: 13101-KWW-740
Pin, Piston: 13111-KVR-C00
Piston Ring Set (Std): 13011-KWW-740
Circlips, piston (2): 13115-KVR-C00
Valve Stem Seal (2): 12209-GB4-682
(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Compatibility:
This cylinder kit can be installed on almost all typical 110i fuel injected Honda engines.
Fit for Honda Wave 110i AFS110 (EFi๏ผ2011-2013
Fit for Honda EX5 Dream 110i
Fit for Honda Cross Cub 110, C110 Super Cub, NBC110 2012-2017
Fit for Honda Super Cub 110 C110 JA10 2018-2019
Fit for Honda Cross Cub 110 CC110 JA10 2018-2019
Fit for Honda CRF110F fuel injected models 2013-2025
This is a cylinder block with a 90ยฐ angle for the oil temp sensor, so it will be plug and play ready to be installed on the fuel injected CRF110F.
Uses a straight mount for the oil temp sensor and does not use the sensor cover because of that.
If you install this specific cylinder block on your CRF110F that you will need to install also the KWB cylinder head type.
If you install this cylinder on a carbureted bike, then you need to close the hole for the oil temperature sensor with a bolt and a copper washer.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package List:
1x 50mm Cylinder
1x Piston
1x Piston Ring Set
1x 13mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
2x Valve Stem Seals
(Comes exactly as pictured.)
