Product Overview:
If your cylinder is blown, compression is too low, or piston seizure has occurred, this kit is the ideal solution for you.

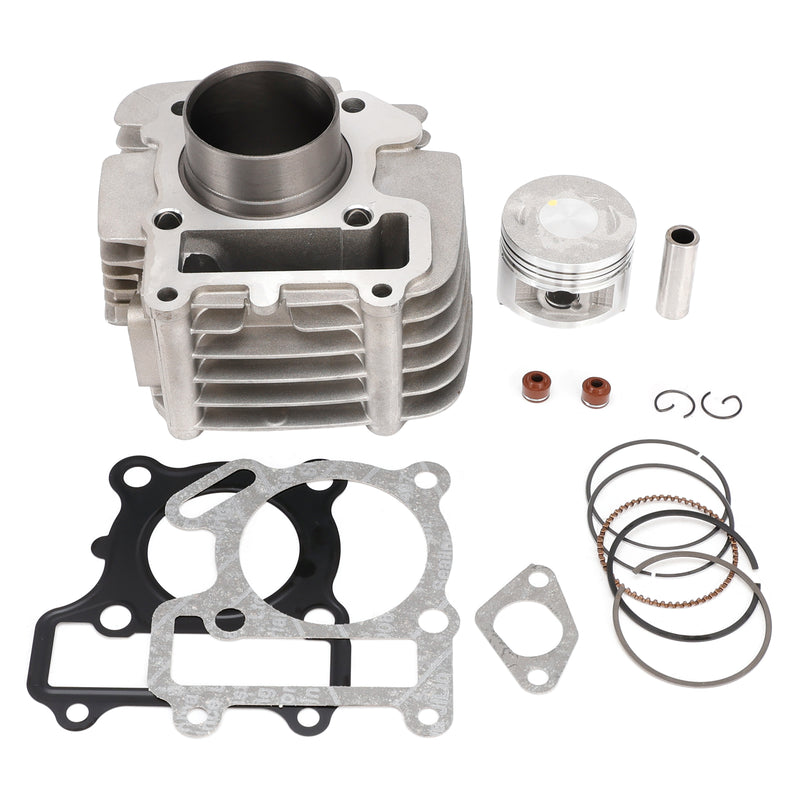

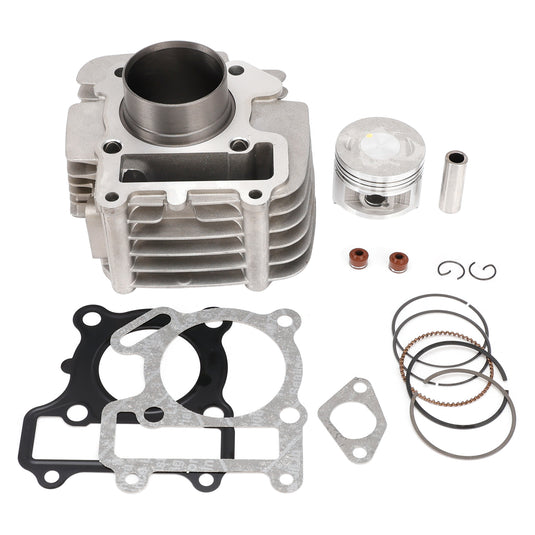

The kit includes everything needed for a complete top-end rebuild: cylinder, piston, rings, pin, clips, and top-end gasket kit (exactly as pictured).

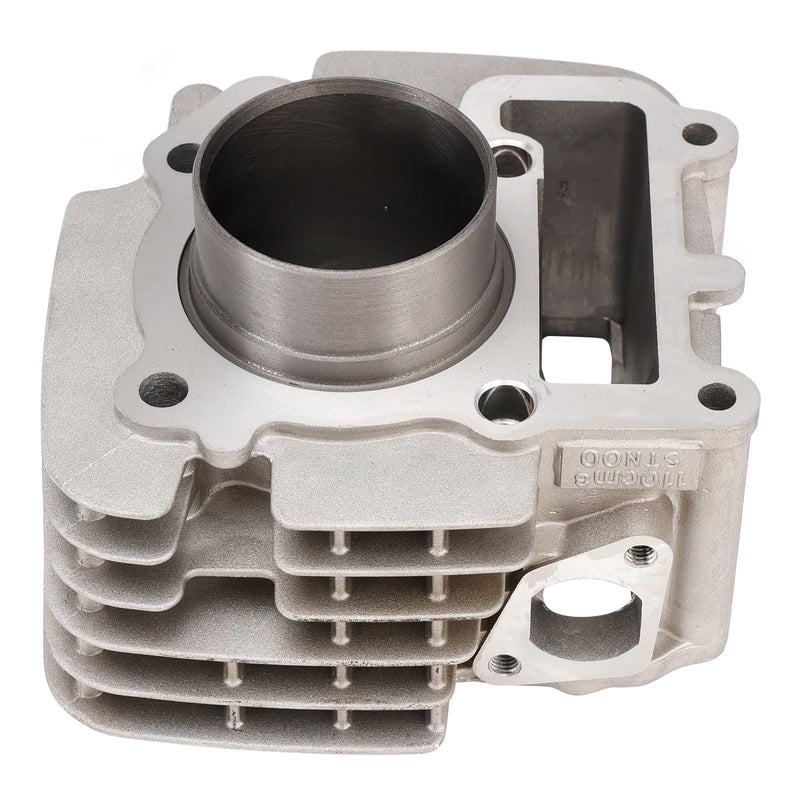

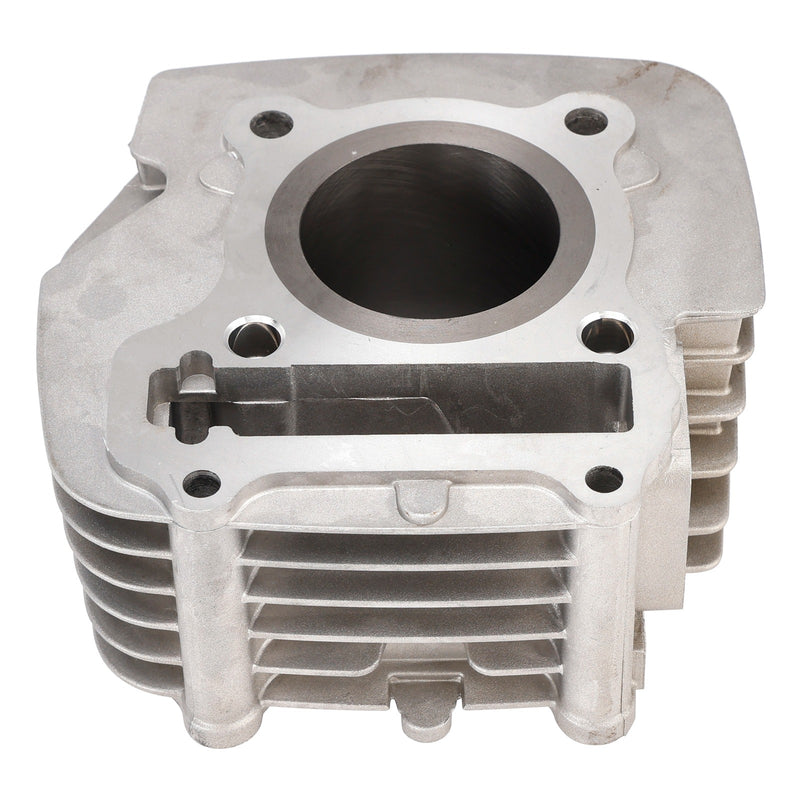

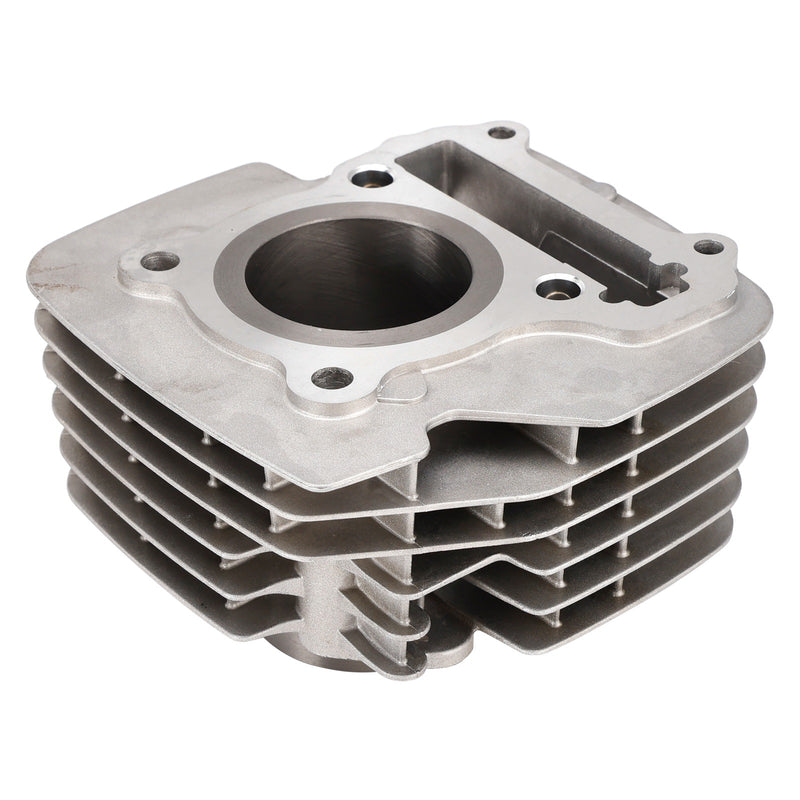

The cylinder is made from aluminum with an internal cast iron sleeve for improved cooling performance and enhanced durability.
High-performance gaskets increase durability and provide greater reliability.
Includes all gaskets shown for a full top-end rebuild.
This kit is designed for a standard bore size of 51mm with a 54mm stroke and a 13mm steel piston pin.
A great low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Engine: 4-Stroke
Displacement: 110cc
Bore Type: Standard Bore
Bore diameter: 51 mm
Stroke: 54 mm
Pin diameter: 13 mm
Replacement Part Number:
Cylinder: 5TP-E1310-01, 5TN-E1310-01
Cylinder Base Gasket: 4ST-E1351-02
Cylinder Head Gasket: 5TN-E1181-00
Piston: 3S0-E1631-00-A0
Pin, Piston: 5LM-E1633-00
Piston Ring Set (Std): 5TP-E1603-20
Circlips, piston (2): 93450-14088
Chain Tensioner Gasket: 3S0-E2213-00
Valve Stem Seal (2): 4S9-E2119-00
(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Compatibility:
Fit for Yamaha TTR110E 2008-2025
Fit for Yamaha Spark-Z 110
Fit for Yamaha Jupiter-Z 110
Fit for Yamaha Crypton T110
Fit for Yamaha C8 New Club 110cc
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package List:
1x 51mm Cylinder

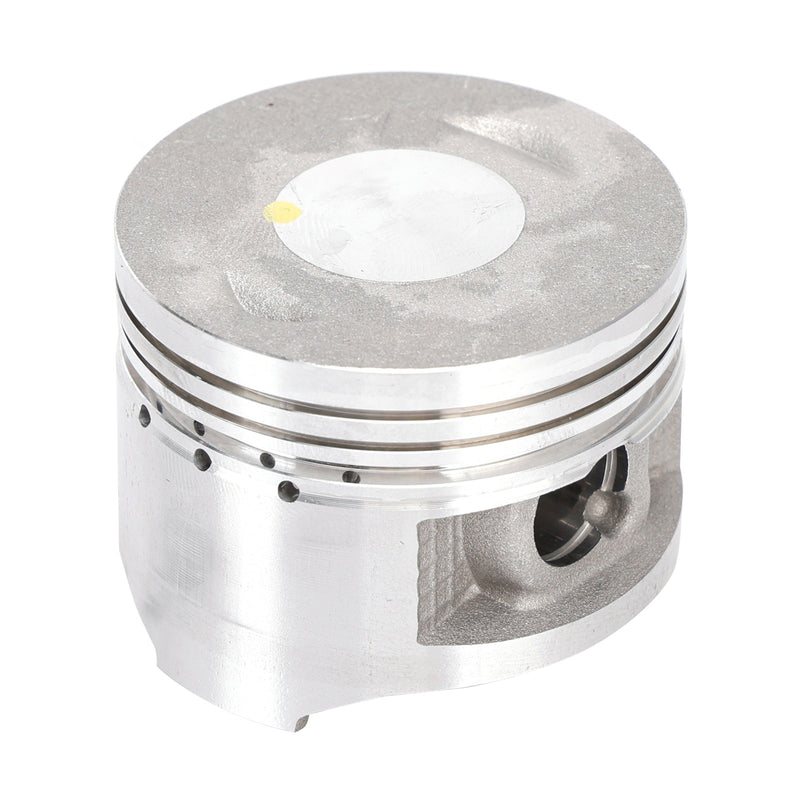

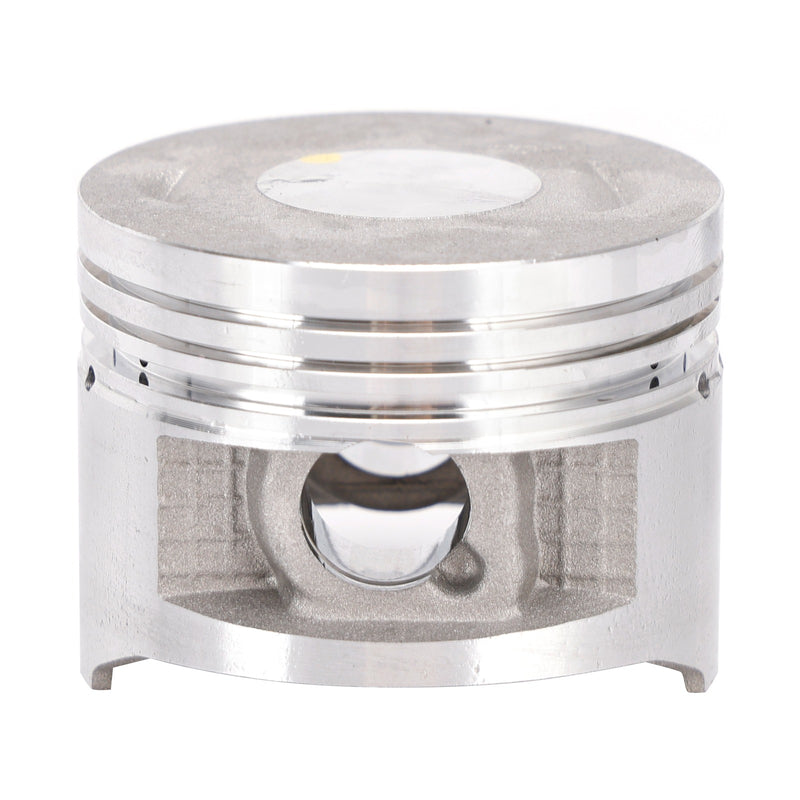

1x Piston

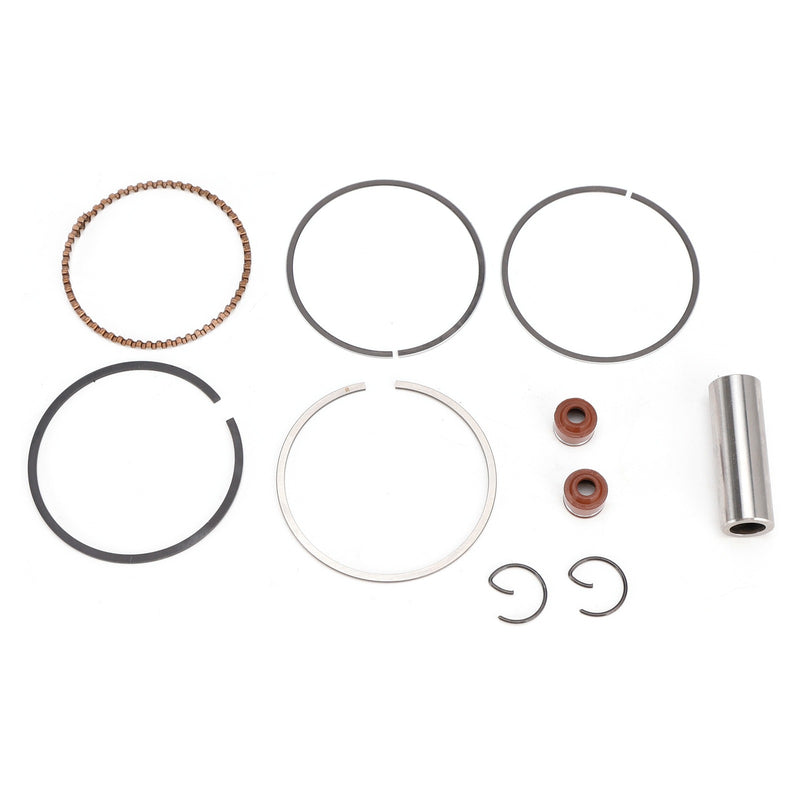

1x Piston Ring Set
1x 13mm Wristpin
1x Circlip(2)

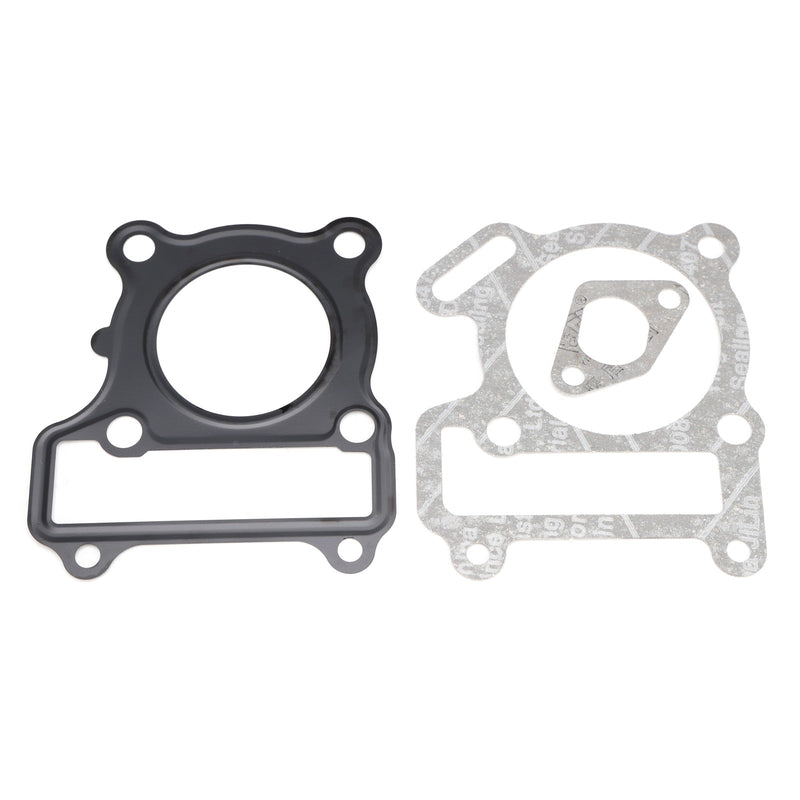

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
2x Valve Stem Seals
(Comes exactly as pictured.)
Notes:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
