Product Overview
This complete top end rebuild kit includes everything you need for a quick and effective top end repair: cylinder, piston, rings, wrist pin, circlips, and top end gasket kit.

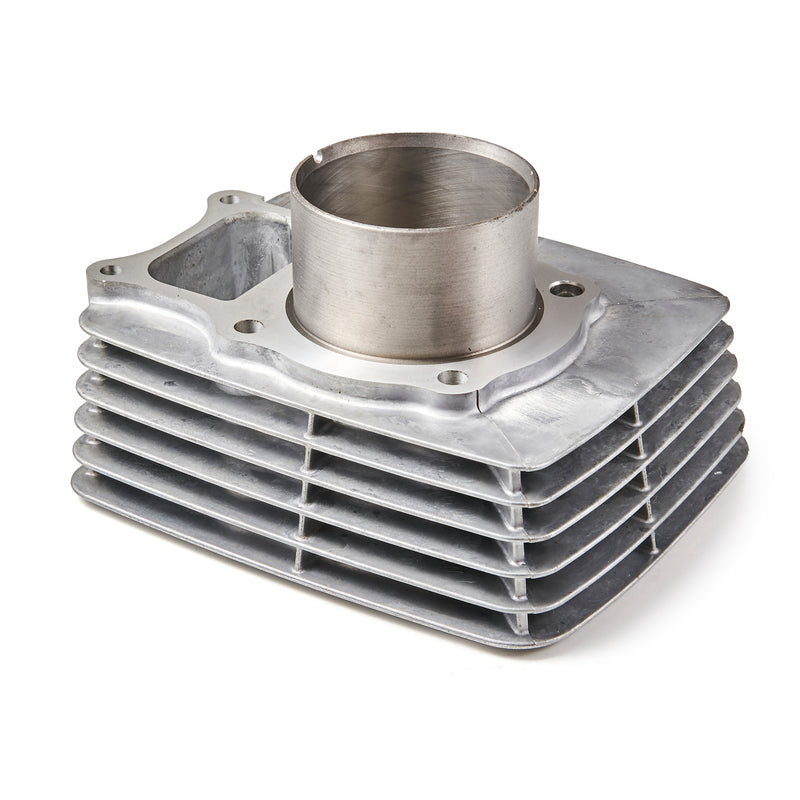

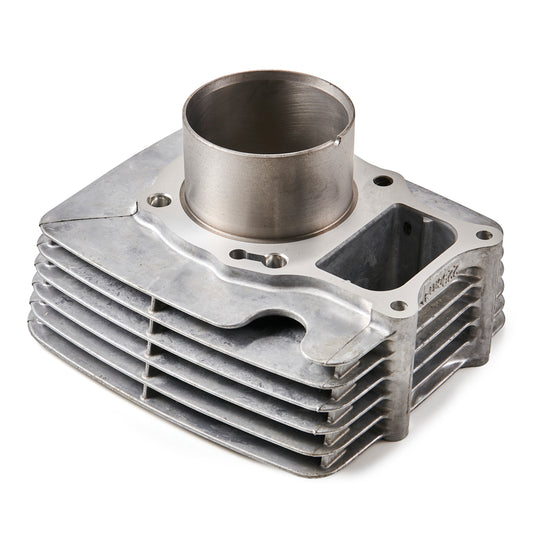

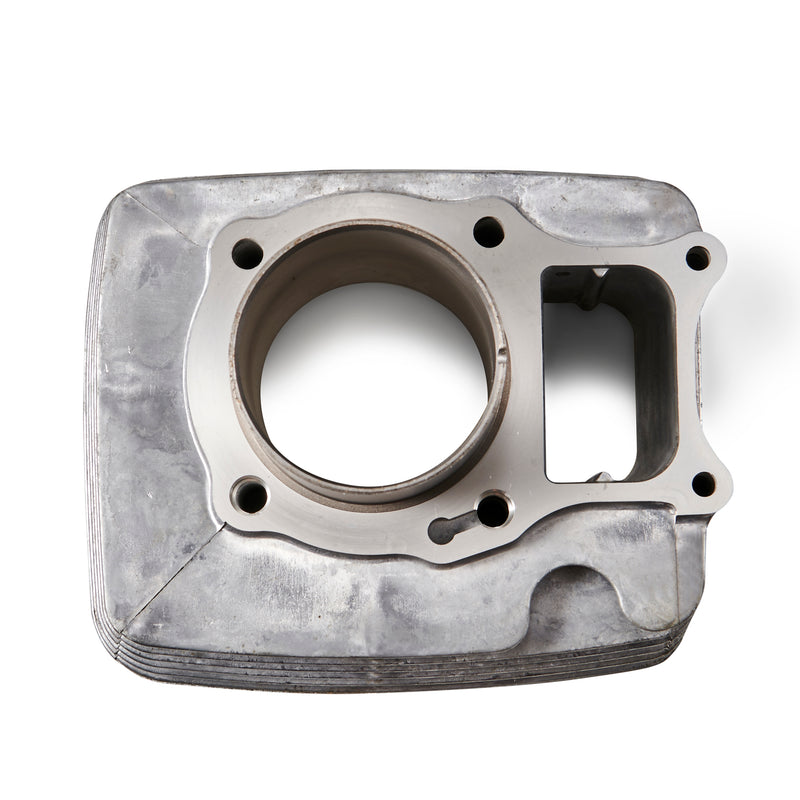

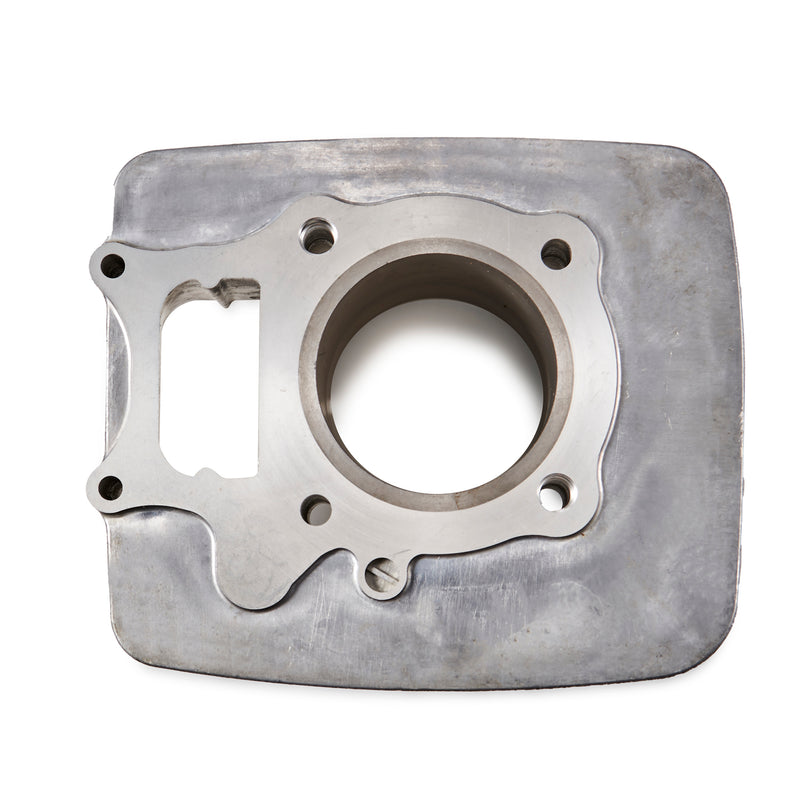

Cylinder is a cast aluminum 68.50mm standard bore replacement with a durable steel sleeve.
Cleaned, bored, and honed to match piston clearances for optimal performance.
Gaskets are top quality and ensure a reliable seal between all components.
Engineered and tested to meet or exceed OEM performance standards.
Designed with DIY mechanics in mind—no modifications required.
All components are bolt-on ready for a hassle-free installation.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Cylinder Material: High-Grade Cast Aluminum

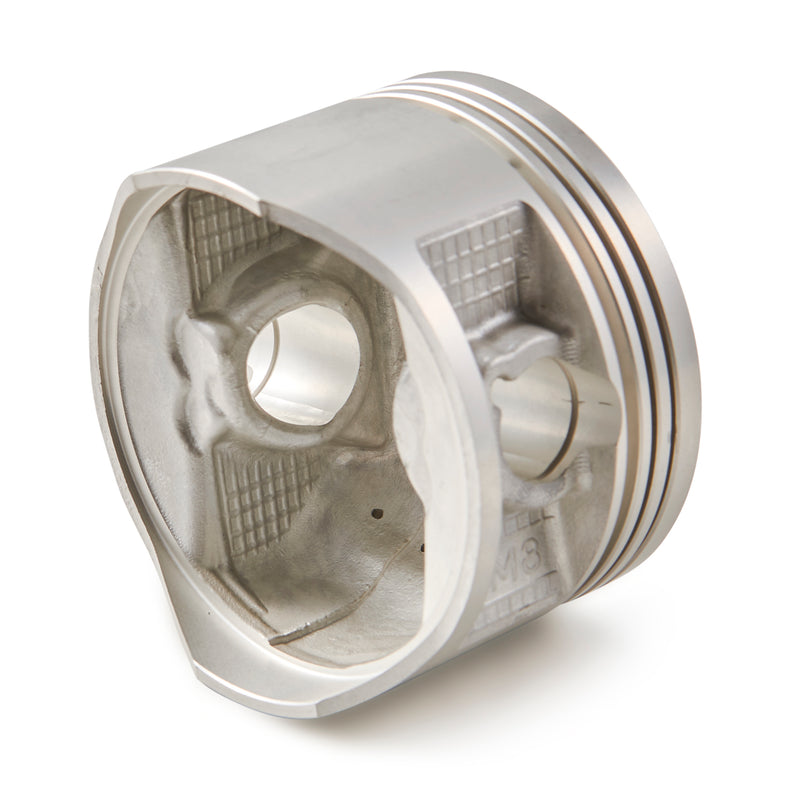

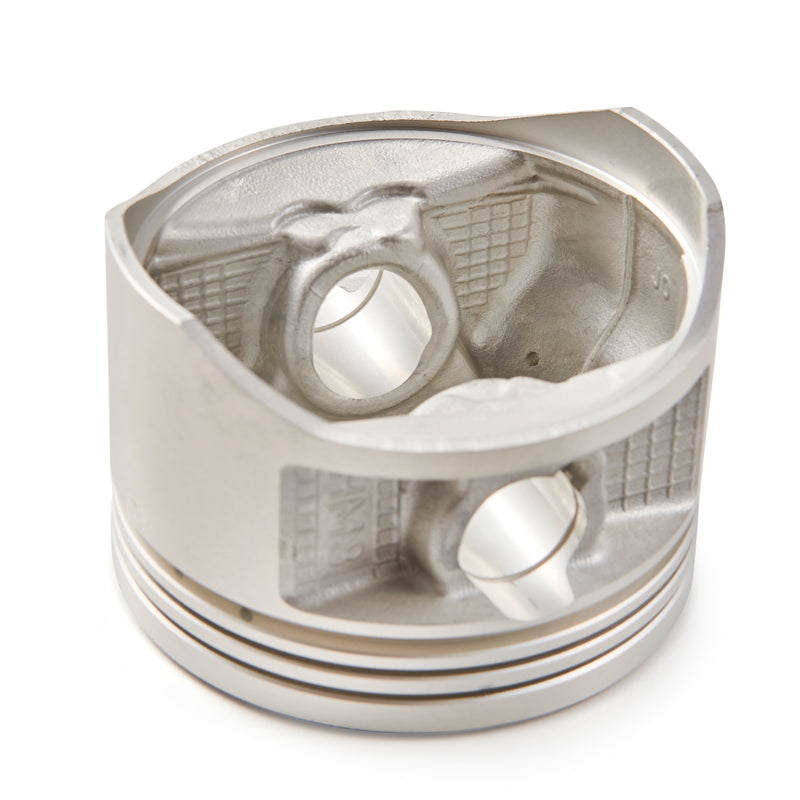

Piston Material: Forged Aluminum
Displacement: 229cc

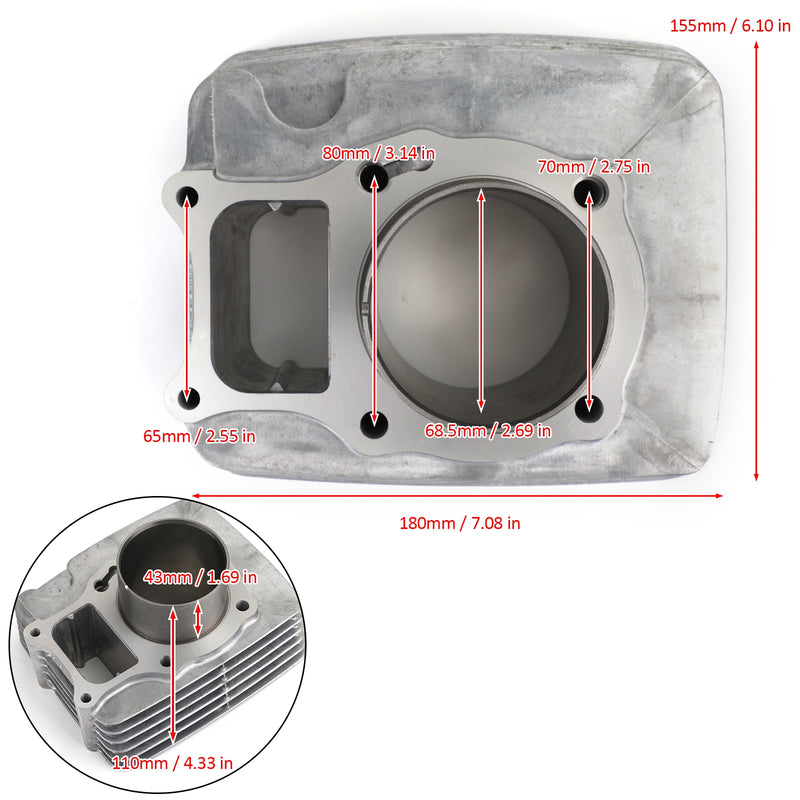

Bore Size: STD 68.50mm
Piston Height: 47.5mm
REFERENCE PART NUMBER(S):
Cylinder: 12100-HN6-000
Piston: 13101-HM8-A40
Wristpin: 13111-425-000
Circlips: 94601-15000
Ring Set(STD): 13011-HM8-003
Base Gasket: 12191-HM8-000
Head Gasket: 12251-HN6-000
Compatibility:
Fit for Honda TRX250EX Sportrax 229cc 2001-2008
Fit for Honda TRX250X 229cc 2009-2020
Fit for Honda TRX250/TE/TM Recon 229cc 1997-2020
Fit for 1997 Honda Recon 250 (TRX250)
Fit for 1998 Honda Recon 250 (TRX250)
Fit for 1999 Honda Recon 250 (TRX250)
Fit for 2000 Honda Recon 250 (TRX250)
Fit for 2001 Honda Recon 250 (TRX250)
Fit for 2002 Honda Recon 250 2x4 (TRX250TM)
Fit for 2002 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2003 Honda Recon 250 2x4 (TRX250TM)
Fit for 2003 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2004 Honda Recon 250 2x4 (TRX250TM)
Fit for 2004 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2005 Honda Recon 250 2x4 (TRX250TM)
Fit for 2005 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2006 Honda Recon 250 2x4 (TRX250TM)
Fit for 2006 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2007 Honda Recon 250 2x4 (TRX250TM)
Fit for 2007 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2008 Honda Recon 250 2x4 (TRX250TM)
Fit for 2008 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2009 Honda Recon 250 2x4 (TRX250TM)
Fit for 2009 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2011 Honda Recon 250 2x4 (TRX250TM)
Fit for 2011 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2012 Honda Recon 250 2x4 (TRX250TM)
Fit for 2012 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2013 Honda Recon 250 2x4 (TRX250TM)
Fit for 2013 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2014 Honda Recon 250 2x4 (TRX250TM)
Fit for 2014 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2016 Honda Recon 250 2x4 (TRX250TM)
Fit for 2016 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2017 Honda Recon 250 2x4 (TRX250TM)
Fit for 2017 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2018 Honda Recon 250 2x4 (TRX250TM)
Fit for 2018 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2019 Honda Recon 250 2x4 (TRX250TM)
Fit for 2019 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2020 Honda Recon 250 2x4 (TRX250TM)
Fit for 2020 Honda Recon 250 2x4 ES (TRX250TE)
Fit for 2001 Honda TRX250EX Sportrax
Fit for 2002 Honda TRX250EX Sportrax
Fit for 2003 Honda TRX250EX Sportrax
Fit for 2004 Honda TRX250EX Sportrax
Fit for 2005 Honda TRX250EX Sportrax
Fit for 2006 Honda TRX250EX Sportrax
Fit for 2007 Honda TRX250EX Sportrax
Fit for 2008 Honda TRX250EX Sportrax
Fit for 2009 Honda TRX250X
Fit for 2011 Honda TRX250X
Fit for 2012 Honda TRX250X
Fit for 2013 Honda TRX250X
Fit for 2014 Honda TRX250X
Fit for 2016 Honda TRX250X
Fit for 2017 Honda TRX250X
Fit for 2018 Honda TRX250X
Fit for 2019 Honda TRX250X
Fit for 2020 Honda TRX250X
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

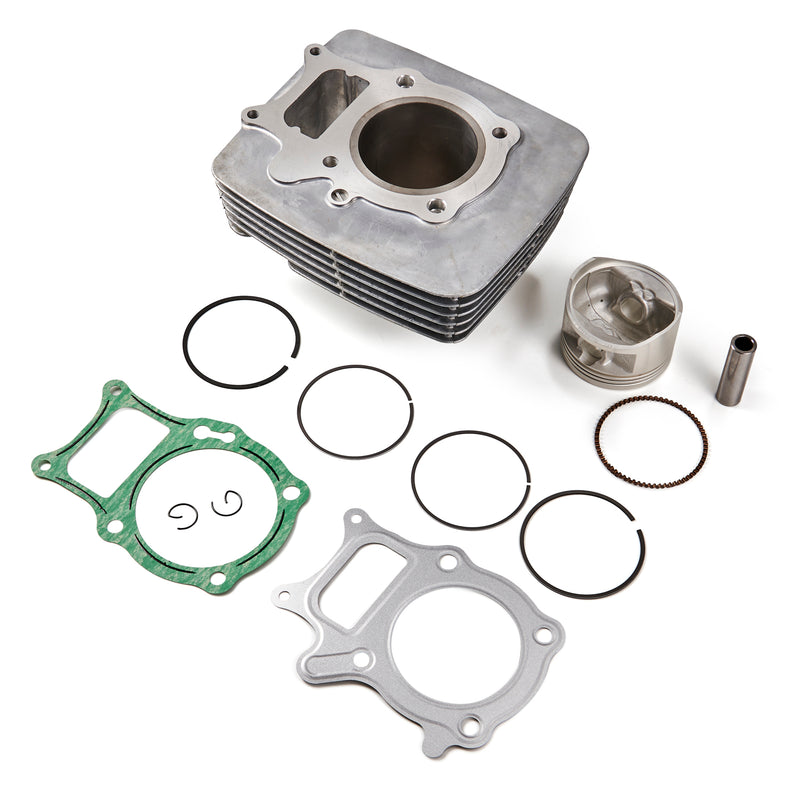

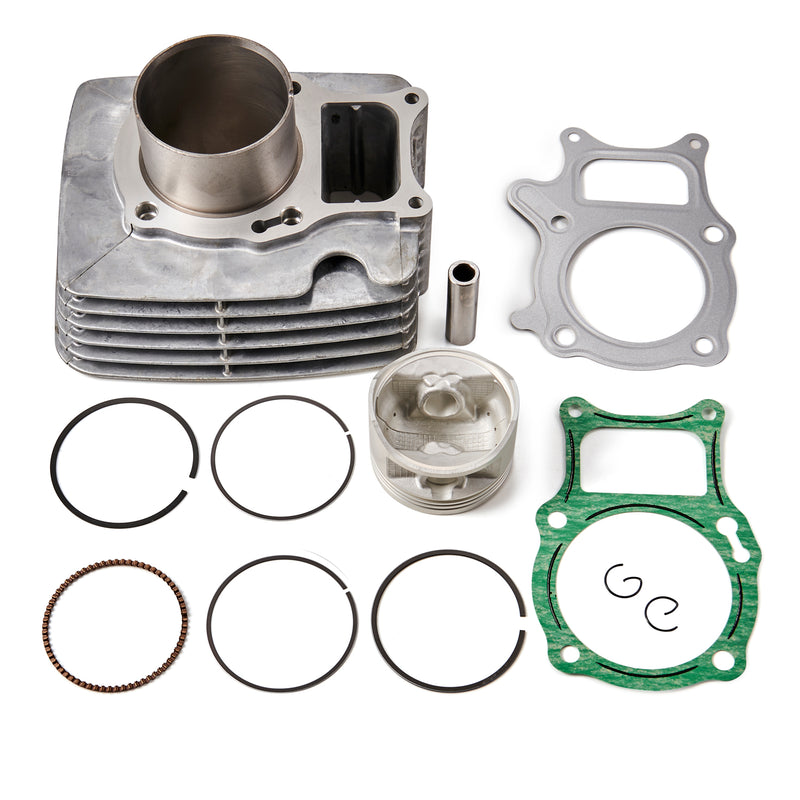

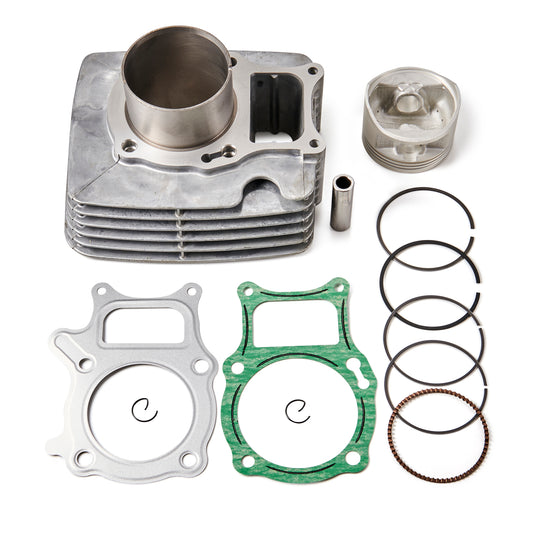

Package List:
1x Cylinder

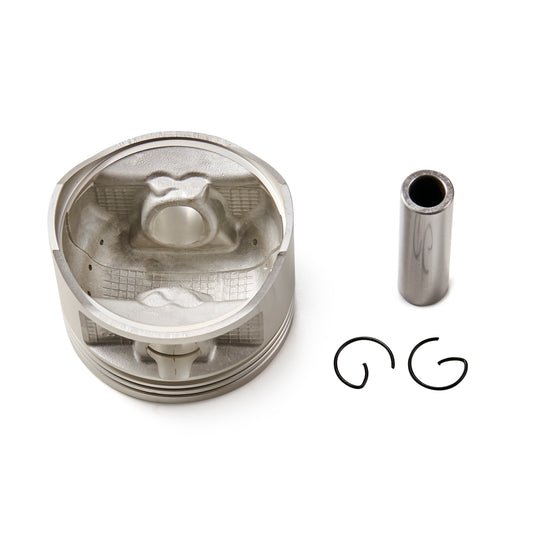

1x Standard Size Piston

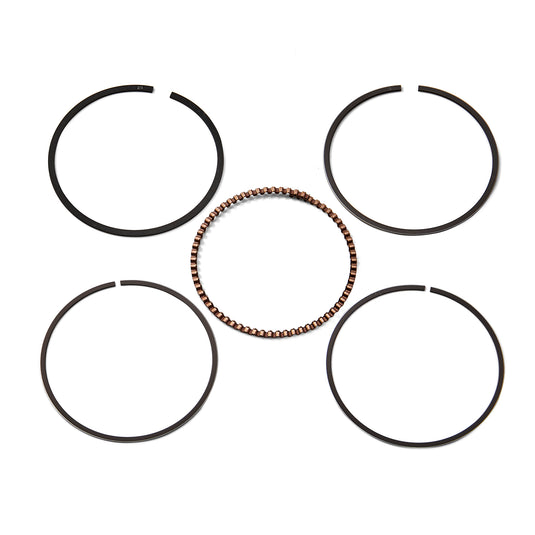

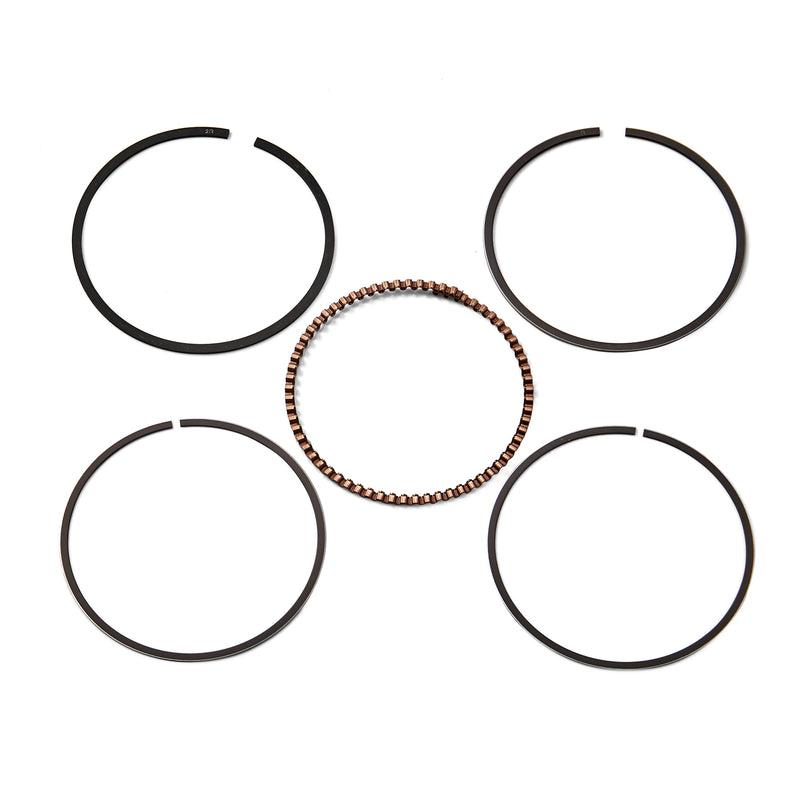

1x Piston Ring Kit
1x Wristpin
2x Circlips

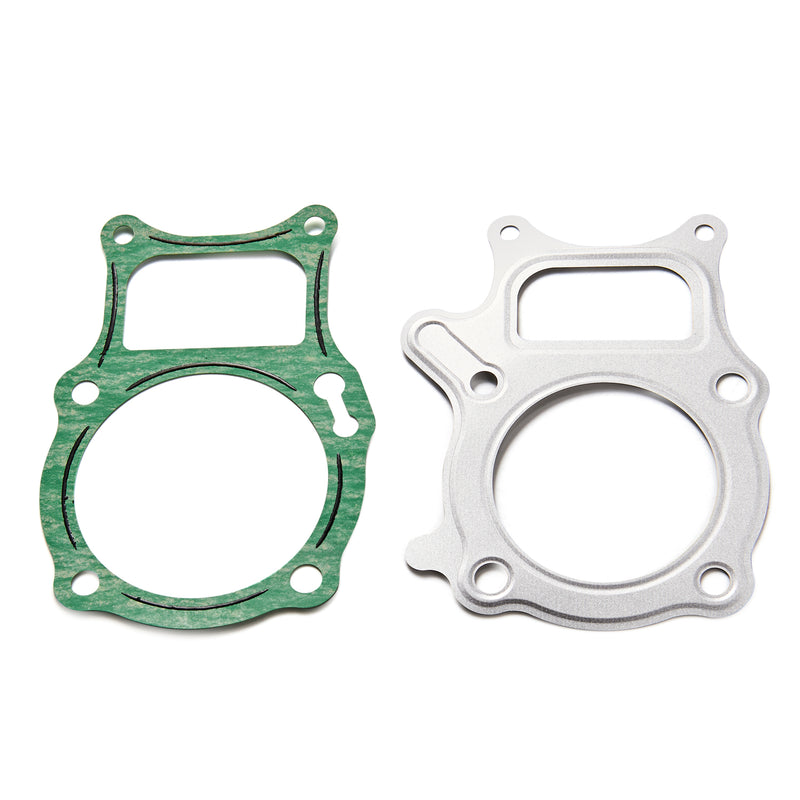

1x Cylinder Head Gasket
1x Cylinder Block Gasket
Notes:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
