Product Overview
This complete top end rebuild kit includes everything shown: piston, rings, pin, clips, and top end gasket kit.
Cast piston features a high silicone content for added strength and durability.
Molybdenum Teflon-coated skirts reduce friction and wear for longer service life.
Anodized piston dome provides superior heat resistance and extended lifespan.
Gaskets are made from performance-grade materials to ensure reliable sealing.
Includes all gaskets pictured to rebuild the top end.
Kit is designed for big bore size 94.00mm.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Piston Material: Forged Aluminum
Actual Displacement: 434cc
Bore Type: Big Bore
Bore Size: 94.00mm
Stroke: 62.60mm
Replacement Part Number:
Fits Suzuki LTZ400
Cylinder: 11210-29F20-0F0
Cylinder Base Gasket: 11241-29F10, 11241-29F11
Cylinder Head Gasket: 11141-29F01
Chain Tensioner Gasket:
Piston: 12111-29F00-0F0
Pin, piston: 12151-24F10
Ring Set, piston: 12140-29F00
Circlips, piston: 09381-20004
Head Cover Washser: 11191-13E00
Washers(4): 09160-10082 10.5x19x2.0
Fits Kawasaki KFX400
Cylinder: 11005-S007
Cylinder Base Gasket: 11061-S070, 11061-S091
Cylinder Head Gasket: 11004-S006
Chain Tensioner Gasket: 11061-S073
Piston: 13001-S006
Pin, piston: 13002-S006
Ring Set, piston: 13008-S008
Circlips, piston: 92033-S040
Washers(4): 92200-S009 10.5x19x2.0
Washer: 92200-S015
Fits Arctic Cat DVX400
Cylinder: 3402-844
Cylinder Head Gasket: 3402-841
Chain Tensioner Gasket: 3402-137
Piston: 3402-846
Ring Set, piston: 3502-011
Circlips, piston: 3003-439
3402-845
3402-847
3402-841
Compatibility:
Fit for Suzuki DR-Z400 2000-2021
Fit for Suzuki DRZ400SM 2005-2009/2013-2021
Fit for Suzuki DRZ400S 2000-2009/2011-2021
Fit for Suzuki DRZ400E 2000-2007
Fit for Suzuki LTZ 400 Quadsport Z400 2003-2014
Fit for Kawasaki KFX400 2003-2006
Fit for Arctic Cat DVX 400 2004-2008
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package List:

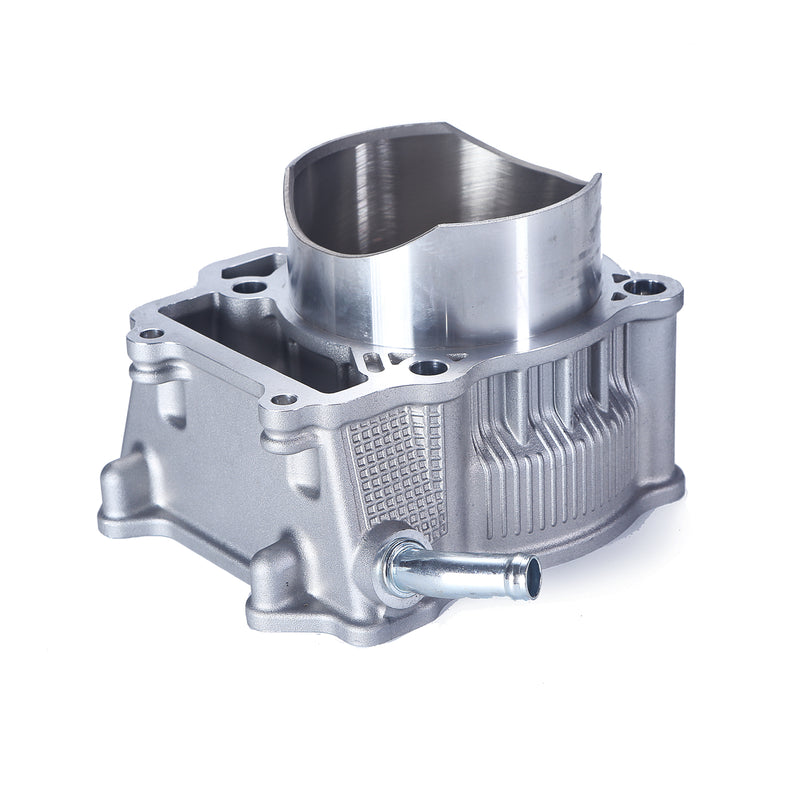

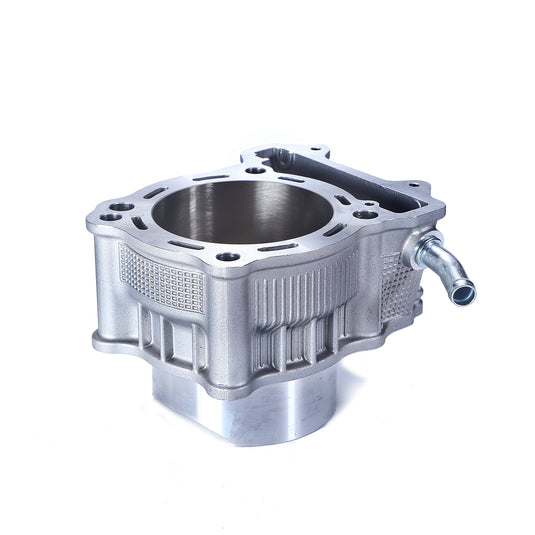

1x 94mm Cylinder
1x Piston
1x Piston Ring Set
1x Wristpin
1x Circlip(2)
2x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
1x Head Cover Washser
4x Valve Washers
1x Spark Plug
Notes:
Ring end gaps are checked prior to shipment for proper sizing.
Please check out the product and size fits your motorcycle or not before you purchase.
