Product Overview:
If your cylinder is blown, compression is too low, or piston seizure has occurred, this kit is the ideal solution for you.

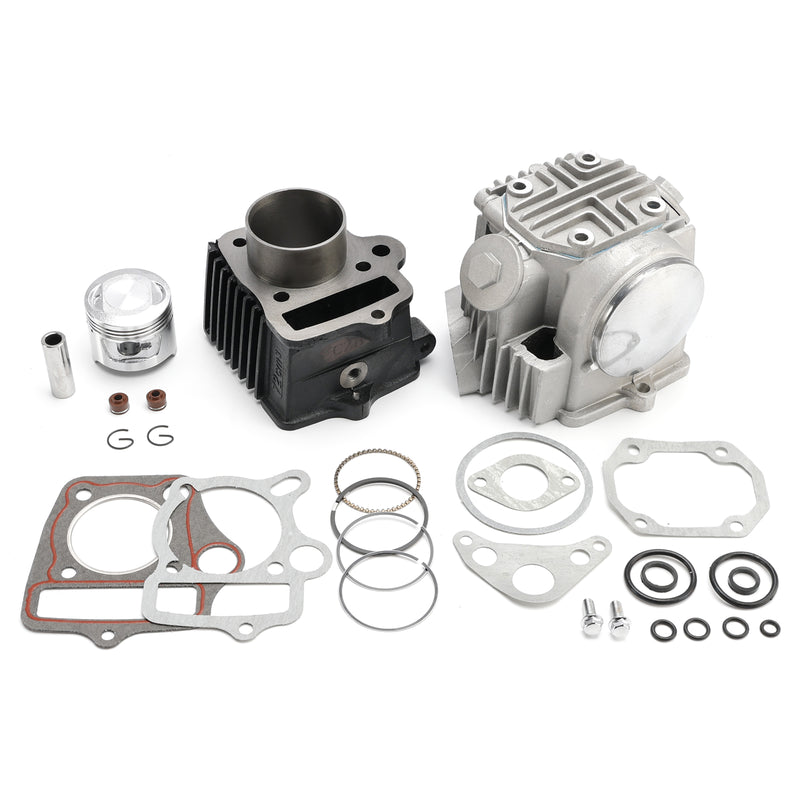

The kit includes everything needed for a complete top-end rebuild: cylinder, cylinder head, piston, rings, pin, clips, and top-end gasket kit (exactly as pictured).
High-performance components increase durability and provide greater reliability.
Includes all gaskets shown for a full top-end rebuild.
This kit is designed specifically for Honda 70cc engines with a standard bore size of 47mm and a 13mm steel piston pin.
A great low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Displacement: 72cc
Bore Type: Standard Bore
Bore Size: STD 47mm
Pin Diameter: 13mm
Pin Overall Length: 38.5mm
Replacement Part Number:

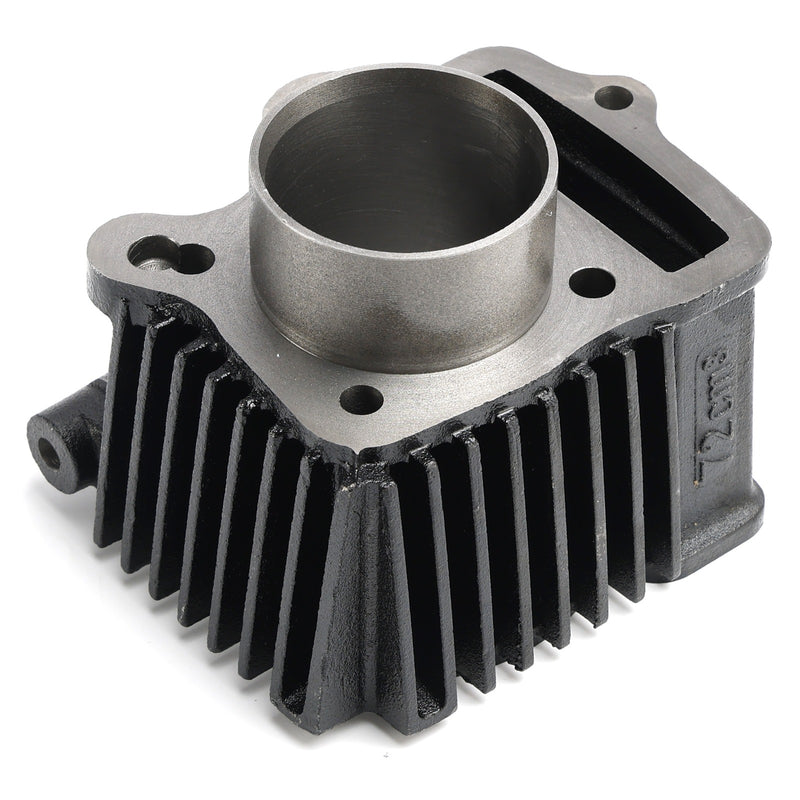

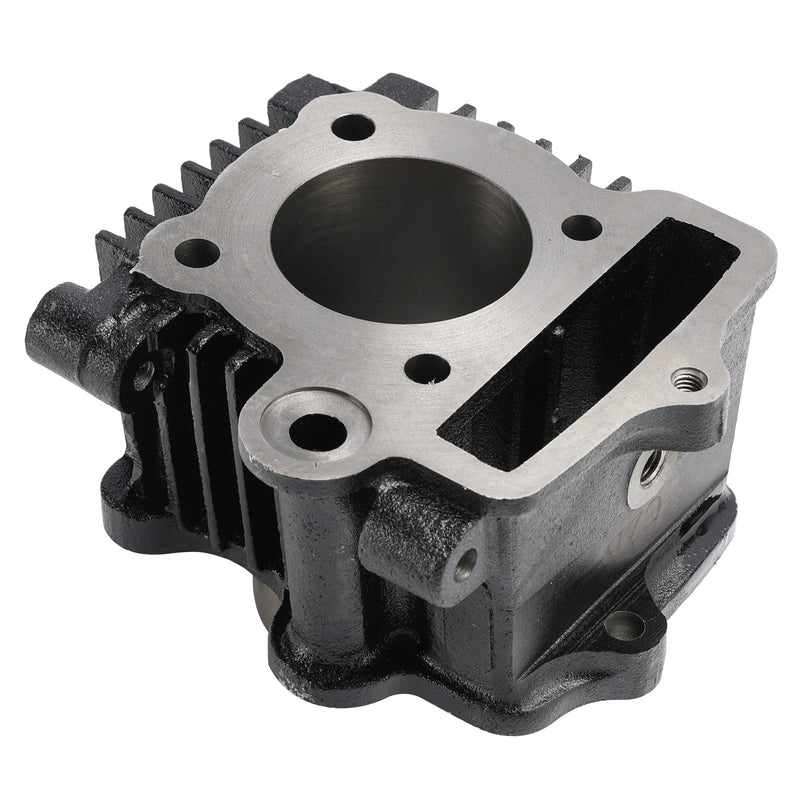

Cylinder: 12101-GB0-910, 12101-087-000, 12101-087-010, 12101-HB2-000, 12101-098-670, 12101-098-671

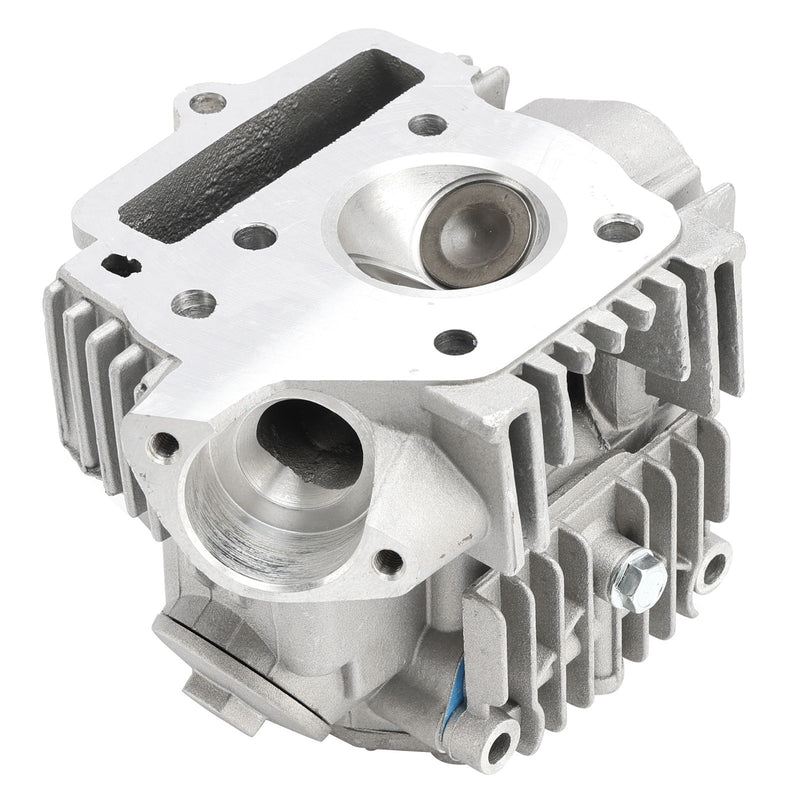

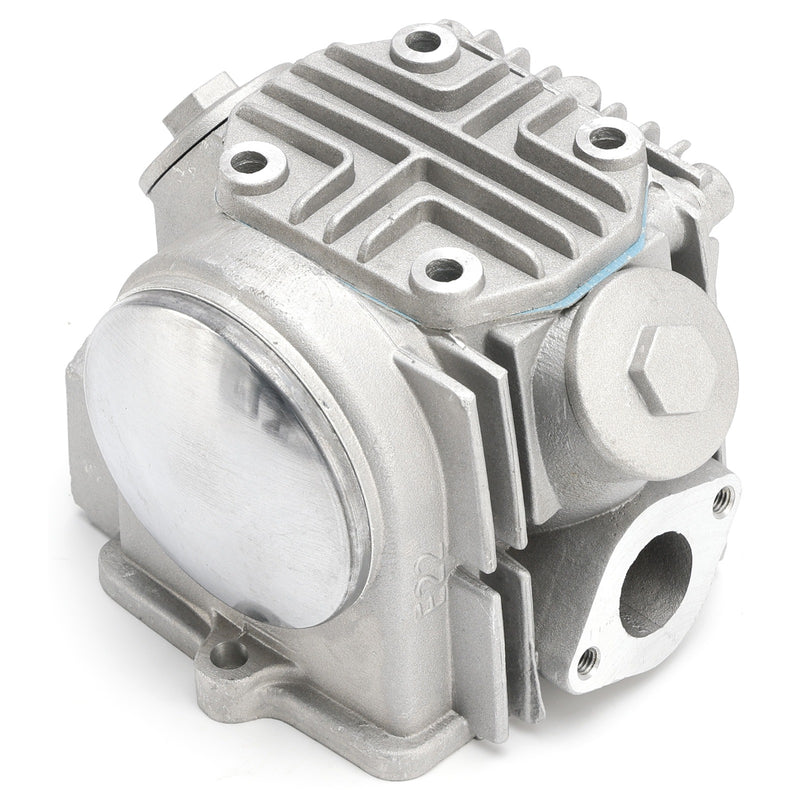

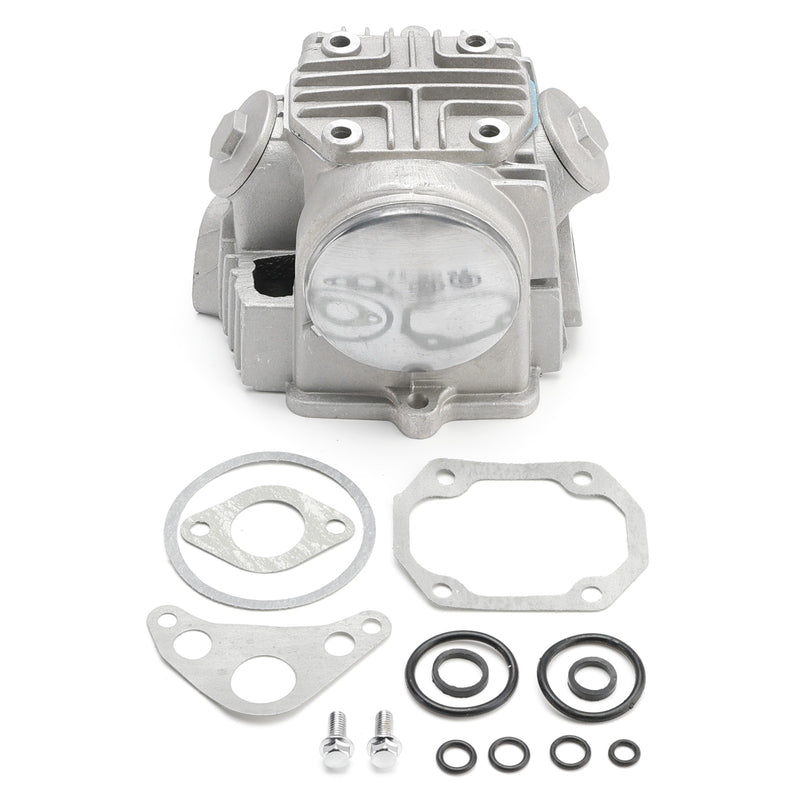

Cylinder Head: 12200-GB0-913, 12200-GT0-751
Cylinder Head Cover: 12301-086-000
Cylinder Head Cover Gasket: 12391-KVM-C20
Cylinder Head R Side Cover: 12331-GB0-910
Cylinder Head R Side Cover Gasket: 12394-GW8-681 (Generator Cover Gasket)
Cylinder Head L Side Cover: 12341-040-000
Cylinder Head L Side Cover Gasket: 12395-GW8-681
Oil Drain Plug(x2): 12361-035-000
Cylinder Base Gasket: 12191-GW8-682
Cylinder Head Gasket: 12251-GB0-306

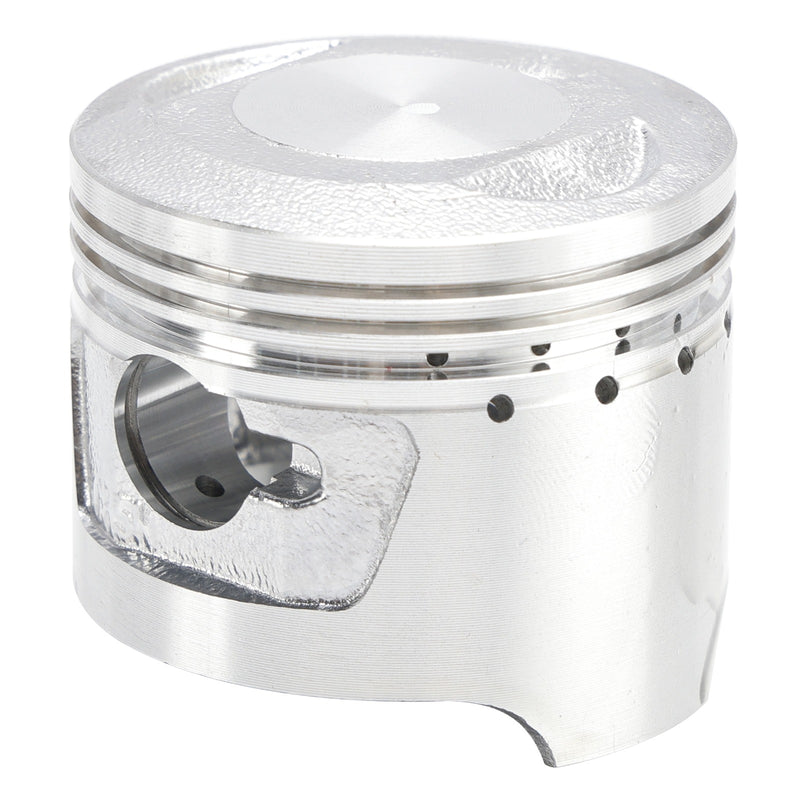

Piston (Std): 13101-GB5-930
Pin, Piston: 13111-GB0-910
Piston Ring Set (Std): 13015-HB2-305
Circlips, piston: 94601-13000
Valve Stem Seals: 14730-GB0-912
Carb Insulator Gasket: 16201-GB0-910
Compatibility:
Fit for Honda S65 1969
Fit for Honda TRX70 1986-1987
Fit for Honda ATC70 1978-1985
Fit for Honda C70 Passport 1971-1972, 1980-1983
Fit for Honda CT70 Trail 1969-1994
Fit for Honda CRF70F 2004-2009, 2011-2012
Fit for Honda XR70R 1997-2003
Fit for Honda XL70 1974-1976
Fit for Honda SL70 Motosport 1971-1973
Fit for Honda CL70 Scrambler 1969-1972
(will not fit models with domed piston.)
Please compare our kit with your original part to make sure this is the correct kit that you want.
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package List:
1x Cylinder
1x Cylinder Head
1x Cylinder Head Cover
1x Cylinder Head Cover Gasket
1x Cylinder Head R Side Cover
1x Cylinder Head R Side Cover Gasket
1x Cylinder Head L Side Cove
1x Cylinder Head L Side Cover Gasket
2x Oil Drain Plug
1x Cylinder Base Gasket
1x Cylinder Head Gasket

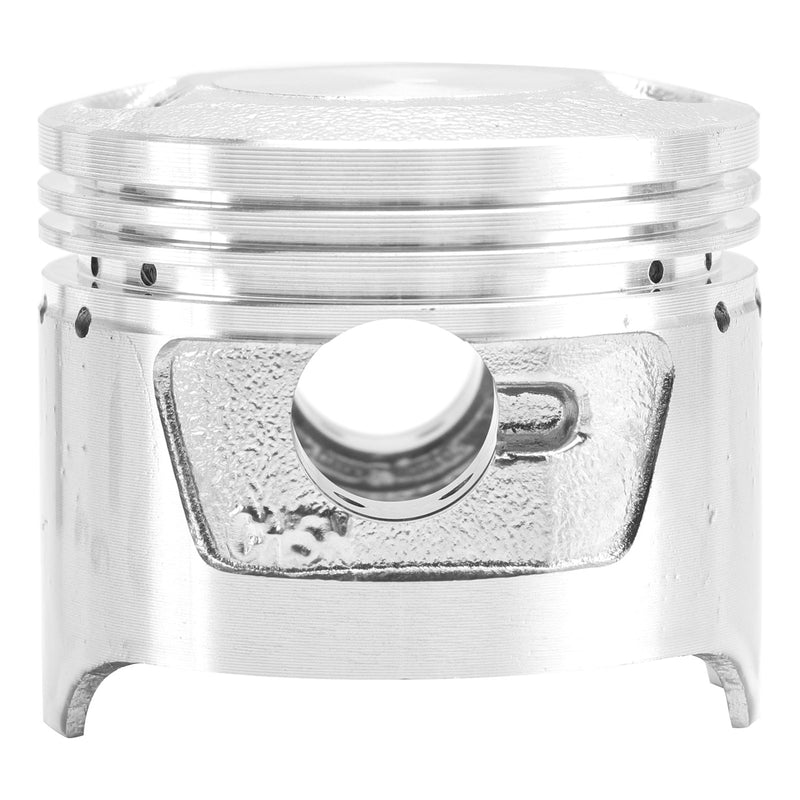

1x Flat Piston
1x Piston Pin
1x Piston Ring Set
2x Circlips
2x Valve Stem Seals
1x Carb Insulator Gasket
1x O-Ring kit
Notes:
Please note that this kit is intended to be installed in it's entirety.
It is built to work as a unit and will not necessarily be an exact swap with individual existing components on different Honda 70 models.
Please confirm that the engine in your bike is the year and model you expect.
Some of these bikes are over 50 years old now and are not always all original.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
