Product Overview:
Direct replacement for the original unit with a true plug-and-play, OEM-fit installation.
Built using high-grade lamination materials for stable performance and long-term durability.

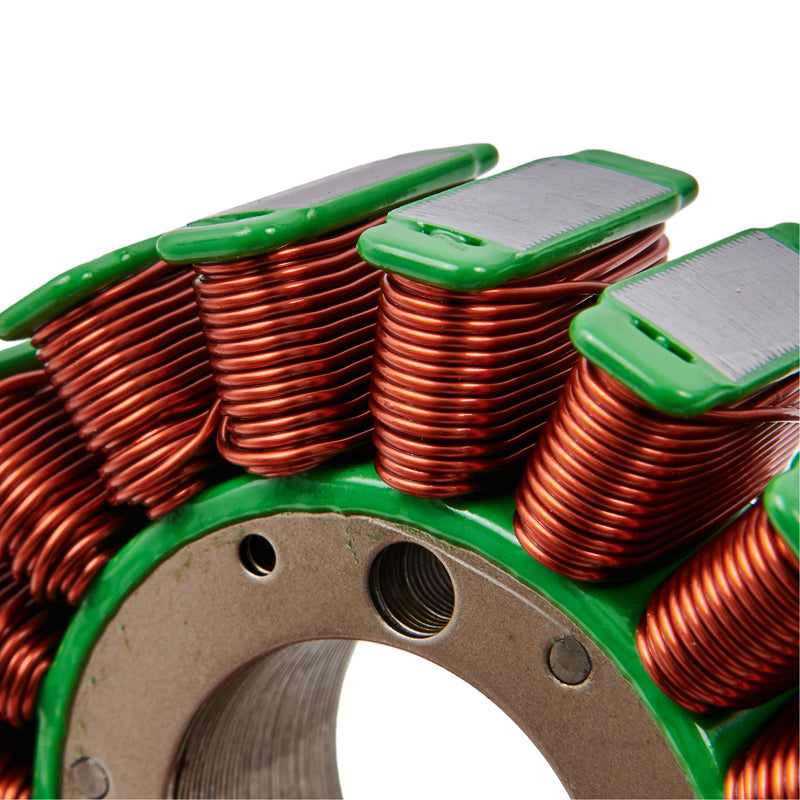

Equipped with premium copper windings rated up to 200°C, ensuring excellent heat resistance.
Includes connector for a complete and easy installation setup.
Each unit is fully tested before shipment to guarantee reliability.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

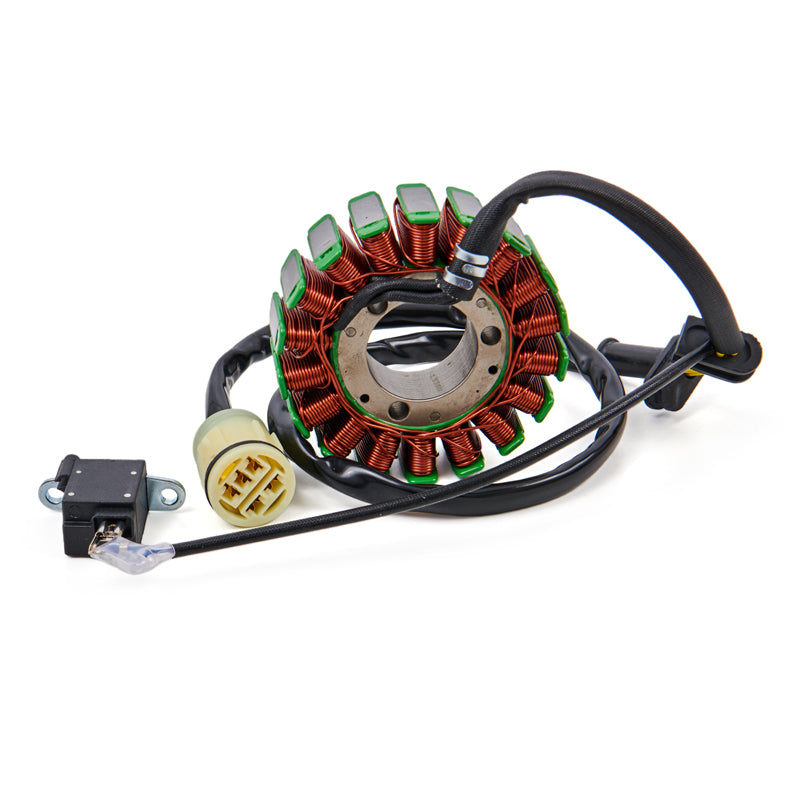

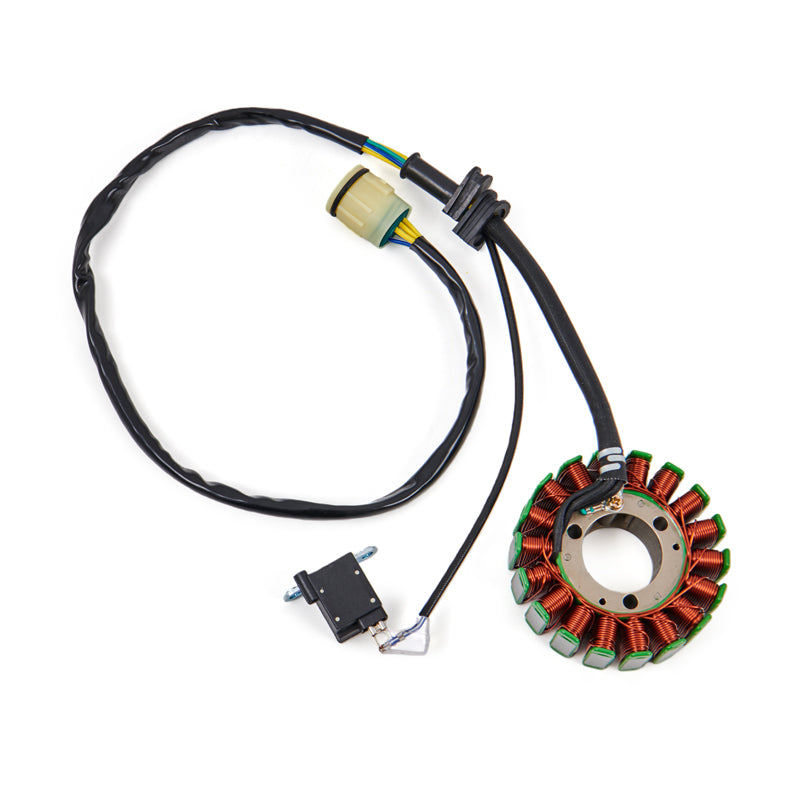

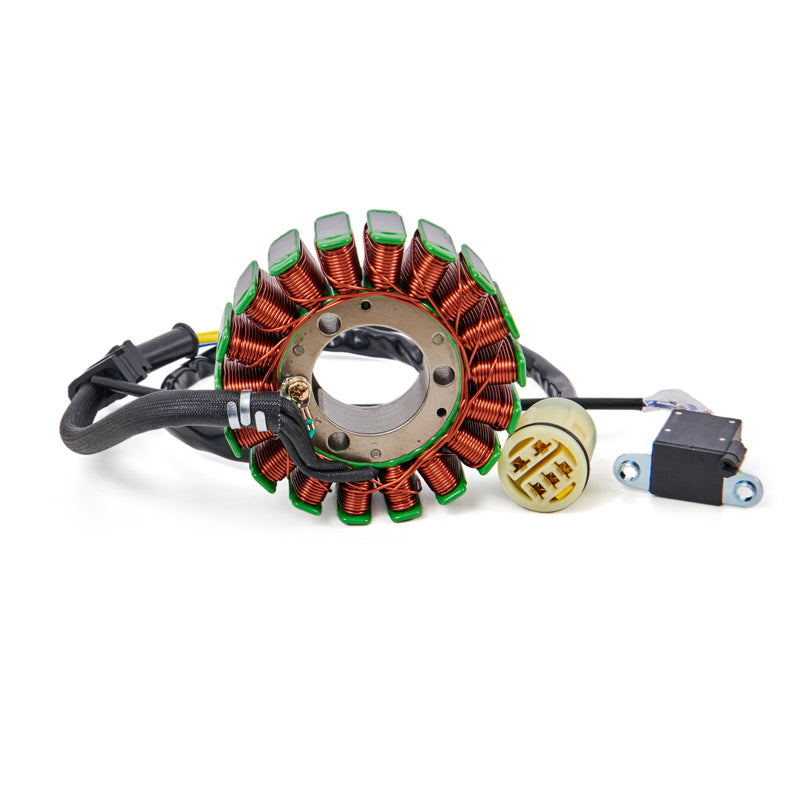

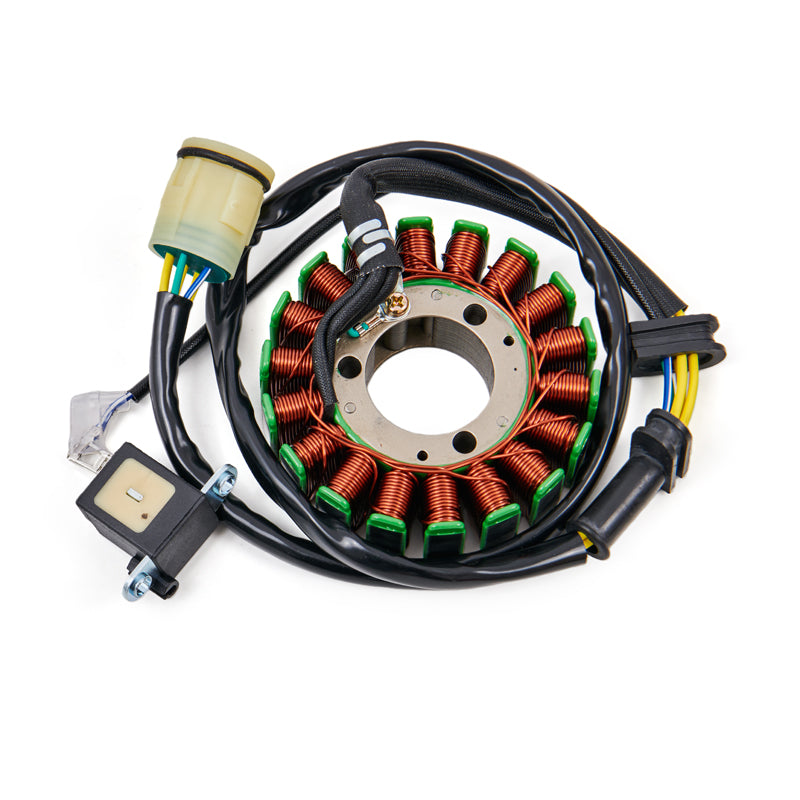

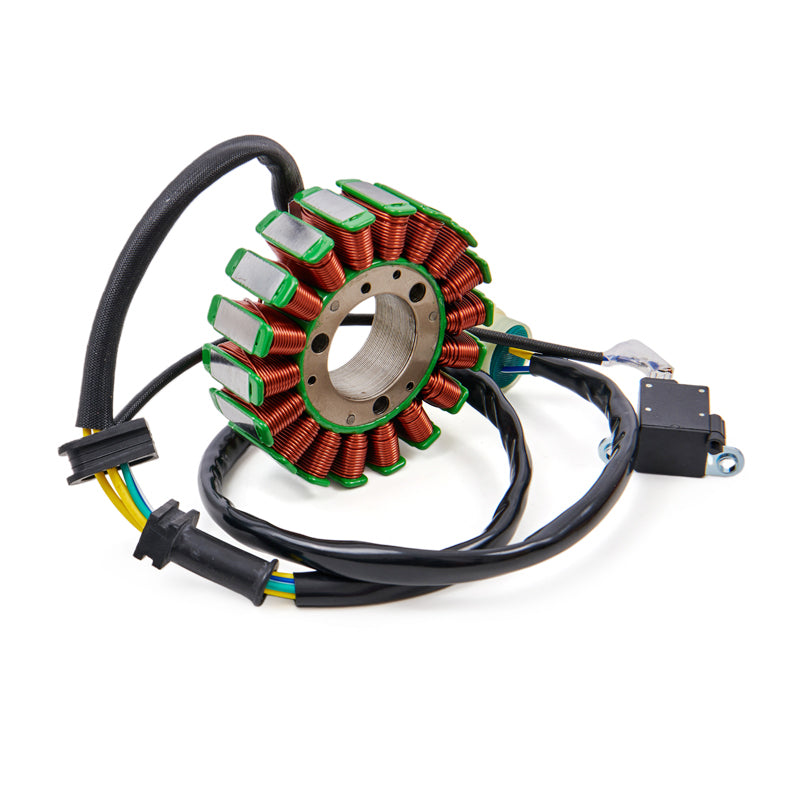

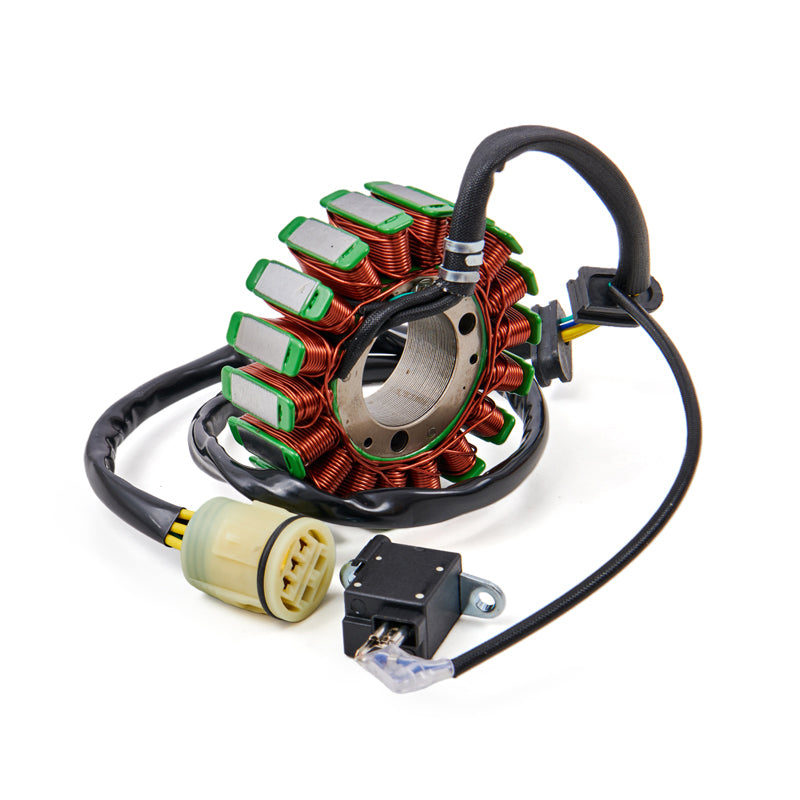

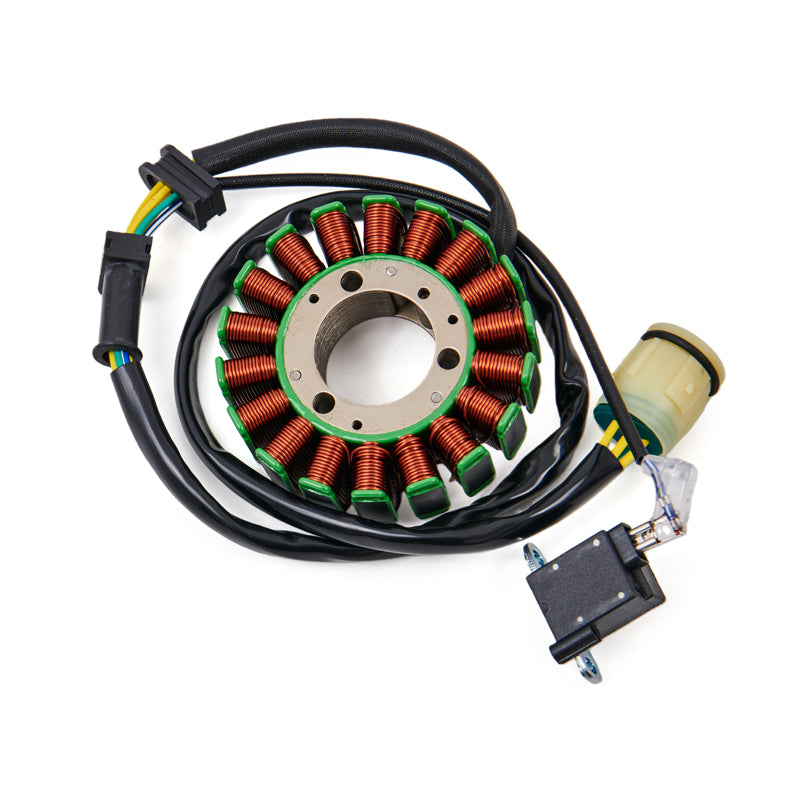

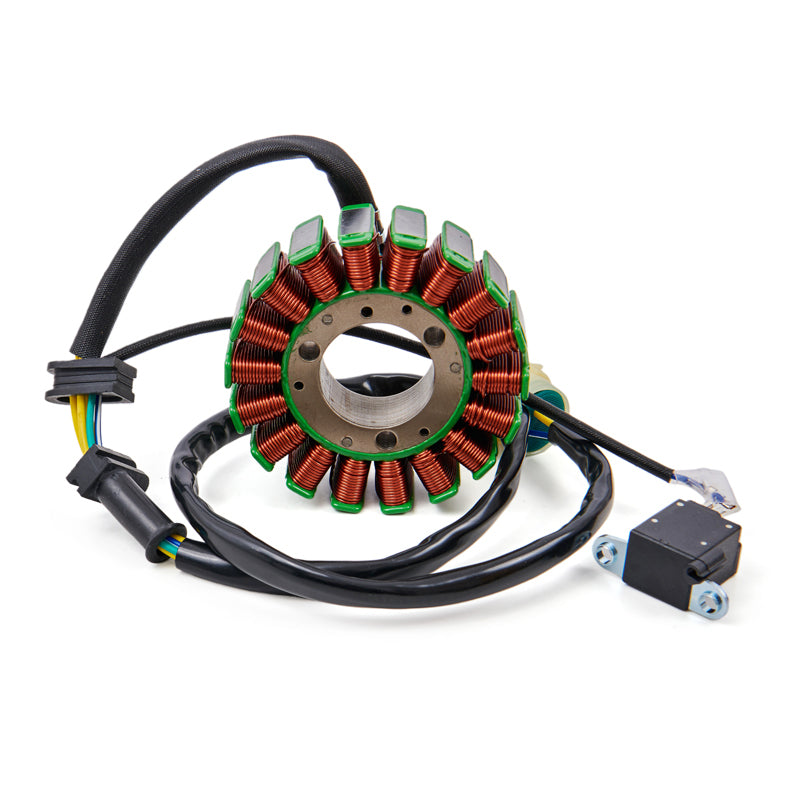

Type: Generator Stator Coil
Replacement Part Number: 31120-HN7-000, 31120-HN7-003
Dimensions :
Interior diameter : 35.3mm/1.39"
Exterior diameter : 93mm/3.66"
Pole's Thickness : 31.5mm/1.24"
Pole's Width : 11.2mm/0.44"
Other specifications :
Number of wires: 5

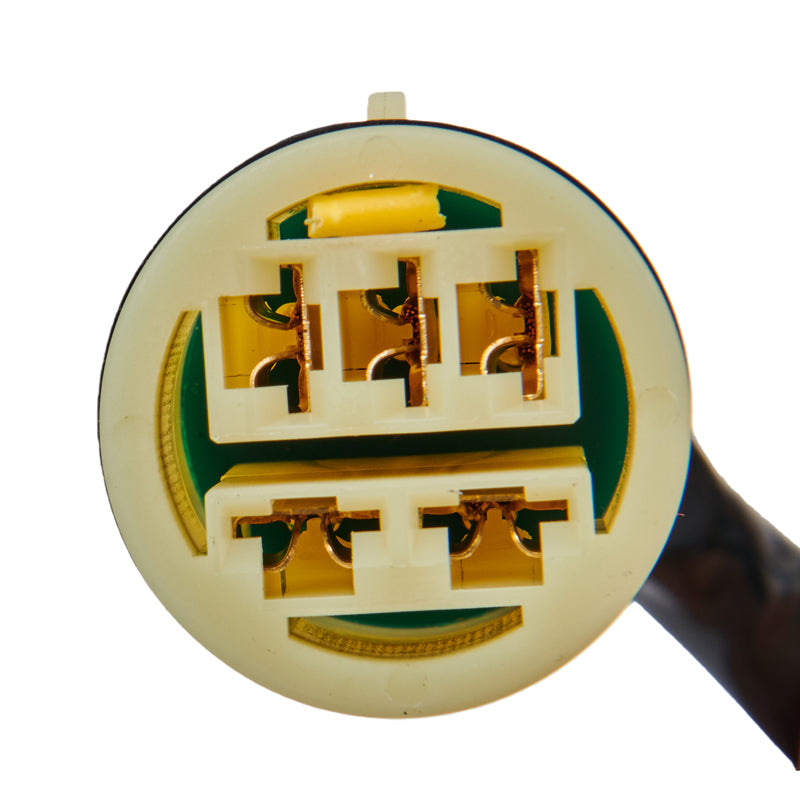

Number of pins: 5
Number of plugs: 1
Number of fixation holes: 3(+2)
Number of poles: 18
Compatibility:
For Honda TRX400 Rancher 400 AT GPScape 2004-2007
For Honda TRX400FA FourTrax 400 AT 2004-2007
Package List:
1x Generator Stator Coil
Notes:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.

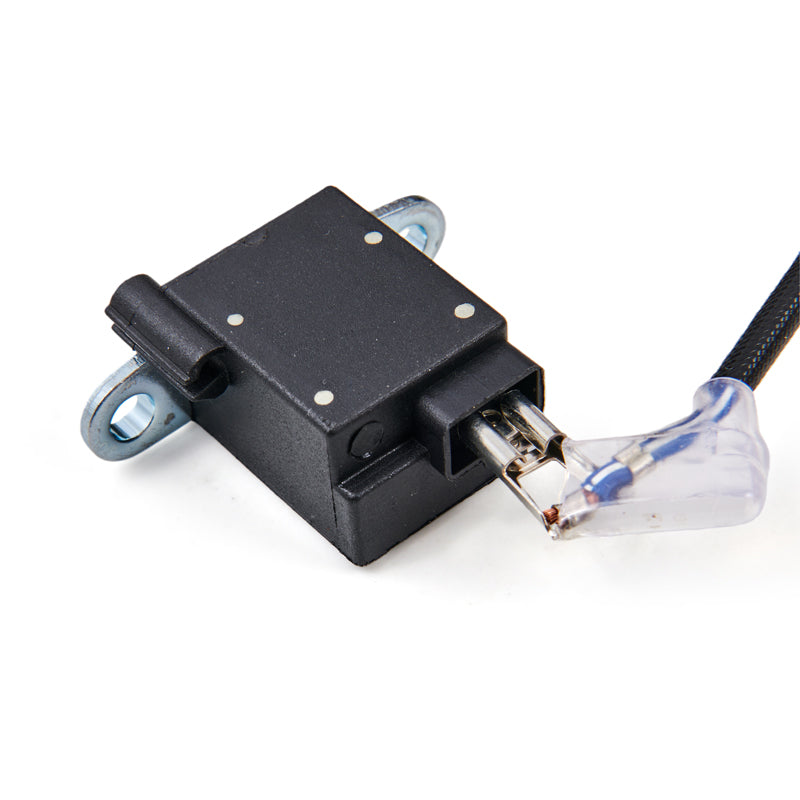

If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
